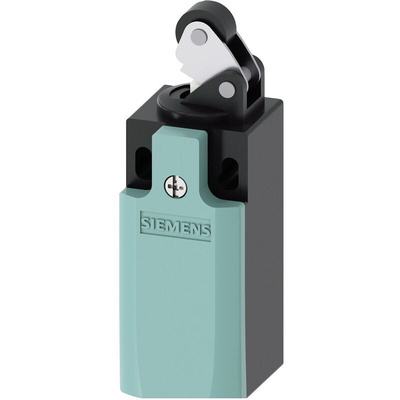

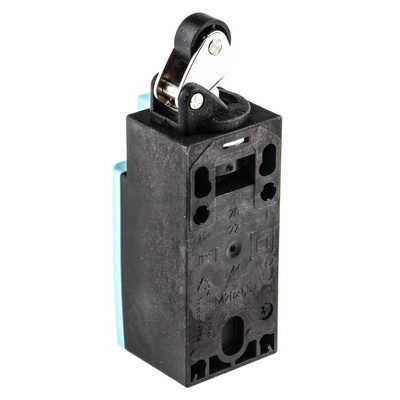

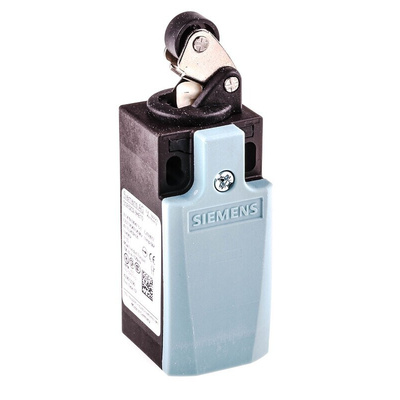

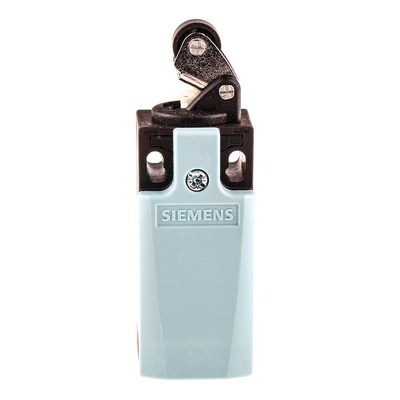

3SE5232-0HE10, Siemens 3SE5 Series Roller Lever Interlock Switch, NO/NC, IP65, DPST, Plastic Housing, 400V ac Max, Концевой выключатель

Siemens Limit Switch, M20 Connection, DPST Configuration - 3SE5 Series - 3SE5232-0HE10

Need to take charge of your automated system? Get some help from this Siemens limit switch. It's used to easily make or break an electrical connection. Roller actuation ensures simple operation, as all you need to do is slide the lever. Thanks to the screw terminals, you can install the unit in a few moments with only a screwdriver. The unit delivers solid performance between -25°C and +85°C and has a robust plastic enclosure that brushes off impact damage, so you can be confident it's a durable solution.

Features & Benefits

• Voltage rating of 400V makes it suitable for demanding applications
• Low-profile dimensions of 31 (W) x 75.7 (L) x 33mm (D) to fit easily in busy setups
• IP65 rating indicates resistance to the dust and low-pressure jets of water that are typical of industrial settings

What does a DPST pole and throw configuration mean?

A configuration like this allows the switch to manage two separate circuits independently, giving you versatile control options.

How long will this limit switch last?

It has a mechanical service life of 15 million cycles, so you can be sure it's built to stay the course.

Machine Guarding and Safety Range Overview

Catalogue - Industrial Controls

Datasheet 3SE5232-0HE10
