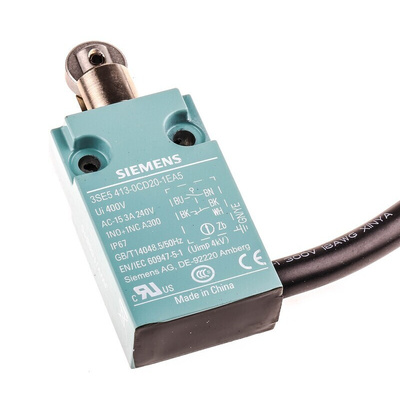

3SE5413-0CD20-1EA5, Siemens 3SE5 Series Roller Plunger Interlock Switch, NO/NC, IP67, DPST, Metal Housing, Концевой выключатель

Siemens Limit Switch

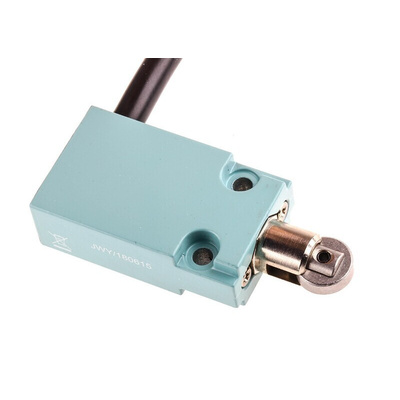

The Siemens 3SE5 series limit switch has a roller plunger actuator and 2 contacts of a snap-action element. This switch has 1NO/1NC contact and positive opening switching function. It has a voltage rating of 400V and a thermal current rating of 10A. It has a 30mm wide enclosure with drilled holes at a spacing of 20mm.

Features and Benefits

Metal enclosure and twist actuator
Used in safety circuits up to category 4, according to EN ISO 13849-1
Connection with a 2m or 5m moulded cable or M12 connector socket
Actuators can be rotated in 90° increments
Time is saved when mounting the fully assembled unit
Insensitive to electromagnetic interference
Minimum mechanical life of 5000000 cycles

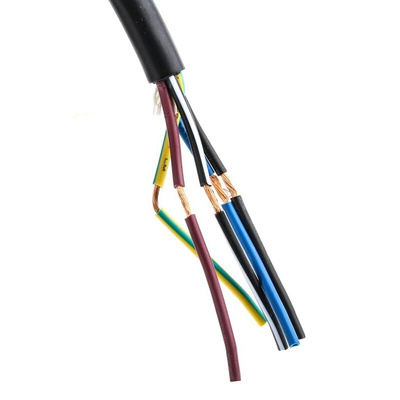

Cable connection is 5 x 0.75 m2 PVC

Certifications

IP67 rated
IEC 60947-5-1
EN ISO 13849-1

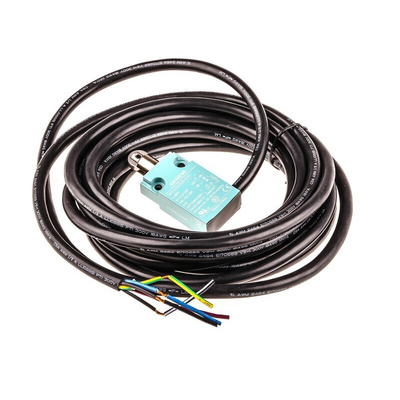

3SE54130CD201EA5 Limit Switch,5m cable,30mm,w/ roller plunger
