TL-W5MB1 2M, Omron Inductive Block-Style Proximity Sensor, 5 mm Detection, PNP Output, 10 → 30 V dc, IP67, Индуктивный датчик приближения

TL-W Standard Flat Inductive Sensors

The TL-W series are standard flat inductive proximity sensors. These sensors are only 6 mm thick yet provide a sensing distance of up to 5mm.

Features and benefits

Pre wired models with 2m cable
Heat resistant ABS casing
Protection circuit: load short circuit protection, surge suppressor
Temperature range -25 → 70 °C
IP67 ingress protection

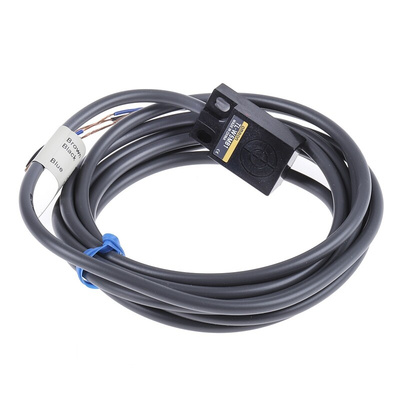

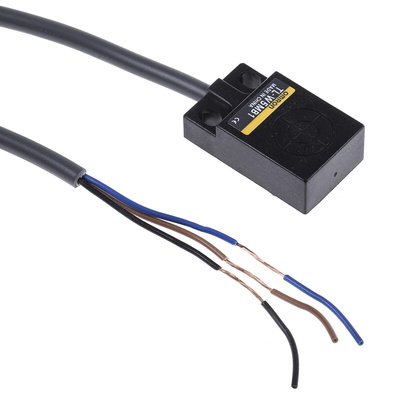

Omron Proximity Sensor, Inductive Sensor Technology, IP67 - TL-W5MB1 2M

This is a flat-type proximity sensor with an unshielded design. It operates on a DC 3-wire system with a PNP output in Normally Open (NO) mode. The sensor has a sensing distance of 5 mm and comes with a 2-metre cable. Its compact size (18 mm x 10 mm x 30.5 mm) makes it suitable for various industrial applications.

Features & Benefits

• Utilises advanced retro-reflective technology with Modulated Scatter Reflective (M.S.R.), ensuring accurate object detection
• Covers a range of 5 mm ±10%
• Employs a red LED (660 nm) for reliable performance
• Operate or reset time is a swift 0.5 ms maximum
• Functions reliably between -25°C and 70°C (with no freezing or condensation)

Applications

• Ideal for detecting ferrous metal objects with a minimum diametre of 75 mm
• Used in conveyor systems, packaging lines, and assembly processes

What is the sensing range of the TL-W5MB1 2M?

The sensing distance is 5 mm ±10%.

Can I use it in outdoor environments?

The sensor is designed for indoor use and operates reliably within the specified ambient temperature range.

What type of output does it have?

The TL-W5MB1 2M features a PNP open collector output.

What is the response time of the sensor?

The operate or reset time is 0.5 ms maximum.

Is it resistant to oil?

Yes, the sensor has an IP67 rating, making it oil-proof.

Standards

IEC IP67

Datasheet

Datasheet - TL-W5MB1 2M
