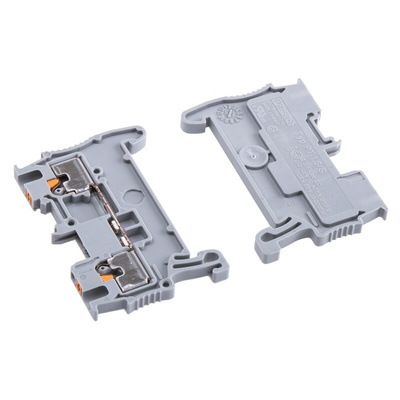

3208100, Phoenix Contact PT 1.5/S Series Grey Feed Through Terminal Block, 0.14 → 1.5mm², Single-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

Phoenix Contact Feed-Through Terminal Block, 500 V, 17.5A - PT 1.5/S - 3208100

Connect your conductors neatly and efficiently by using this feedthrough terminal block from Phoenix Contact. With a voltage rating of 500V and a current rating of 17.5A, the unit is suitable for medium-to-high power applications. It boasts a high surge voltage rating of 6kV, to resist sudden spikes in voltage and provide electrical protection.
The unit is quick and easy to install without specialist tools, thanks to its push-in termination method. Compact dimensions of 3.5 (width), 30.5 (height) and 45mm (length), mean it's a good choice for installation in small enclosures. The device is insulated with Polyamide (PA) material that provides effective electrical resistance and safety. Turn to it for industrial applications including heavy-duty plant machinery and railway equipment.

• UL94V-0 (Underwriters' Laboratory) fire safety rating means it's self-extinguishing in the event of a fire
• ATEX hazardous area certification for safe use in hazardous environments
• Wide operating temperature range of -60°C to +105°C for use in harsh conditions
• Lightweight of 3.8 g for easy handling
• DIN EN 50274 standard for protection against electric shock and unintentional direct contact with hazardous live parts

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
