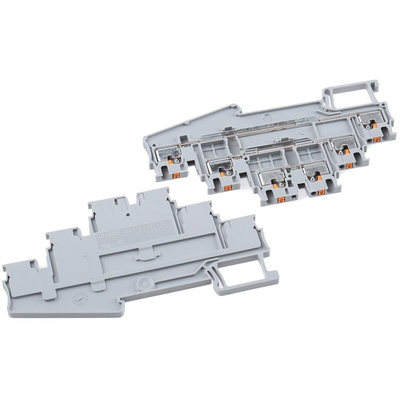

3213713, Phoenix Contact PT 1.5/S-3L BU Series Grey Multi Level Terminal Block, 0.14 → 1.5mm², Triple-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

Phoenix Contact Multi-Level Terminal Block, 500V, 15A - PT 1.5/S-3L - 3213713

Use this multi-level terminal block from Phoenix Contact to securely wire your applications. It features three rows that allow for multiple wire connections on a single block, helping you make the most of available space. For electrical safety, it has a surge voltage of 6kV to withstand voltage spikes. As the block allows for the connection of solid and stranded wires, it's a versatile option that's simple to install. It also has a convenient light weight of 12g, so it won't add strain to your system.
With a broad operating temperature range of -60°C to +105°C, this terminal block can be used in extreme industrial environments. It's safe for use in railway applications and heavy-duty machinery.

• Push-in termination method for fast and simple installation
• Wire size range of 26 to 16 American wire size (AWG) suitable for a wide range of applications
• Polyamide (PA) insulation for electrical resistance and protection
• UL94V-0 (Underwriters' Laboratory) fire safety rating meaning it's self-extinguishing in the event of a fire
• Voltage rating of 500V for medium-voltage applications

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
