3213742, Phoenix Contact PT 1.5/S-3PV Series Grey Multi Level Terminal Block, 0.14 → 1.5mm², Triple-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

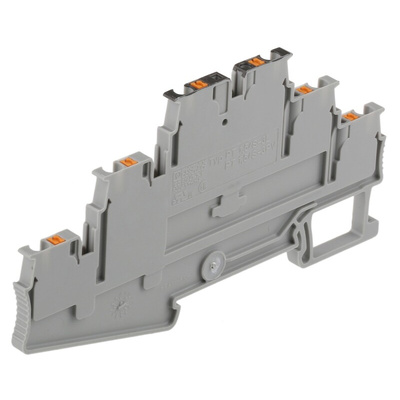

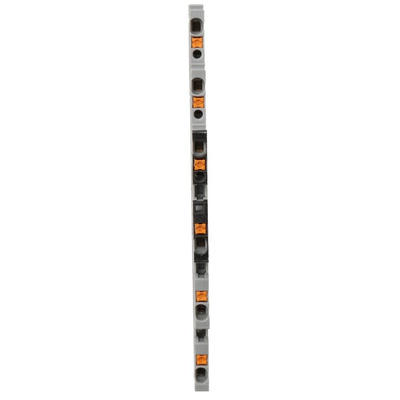

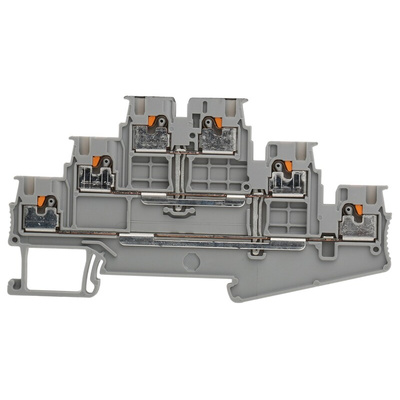

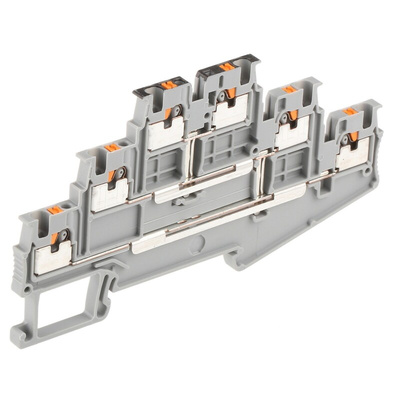

Phoenix Contact Multi-Level Terminal Block, 3 Levels, 26 to 16AWG - PT 1.5/S-3PV - 3213742

For the safe connection of electrical conductors to your control panel, choose this multi-level terminal block from Phoenix Contact. It has three levels, which feature six connections to accommodate multiple conductors at once. As it uses a push-in termination method, you'll find it easy to insert the wires without the need for tools. A broad wire capacity between 26 and 16 AWG makes it a versatile choice. Thanks to a user-friendly actuation button, you can easily disconnect the conductors using just a screwdriver.
Compact dimensions of 97.2 (length) x 3.5 (width) x 60.7mm (height) mean the unit takes up minimal space in a busy panel. The front-facing design makes it simple to connect wires in cramped settings. A voltage rating of 500V and load current of 15A means this terminal block can withstand heavy-duty applications, such as managing cable connections in plant engineering and railway control systems.

• Polyamide insulation helps maintain electrical safety
• Flammability rating of UL 94 V0 to prevent fire from spreading
• Rated surge voltage of 6kV to withstand current overload
• Low power dissipation of 0.56W for reduced energy consumption

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
