3208139, Phoenix Contact PT 1.5/S-PE Series Green/Yellow Earth Terminal Block, 0.14 → 1.5mm², Single-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

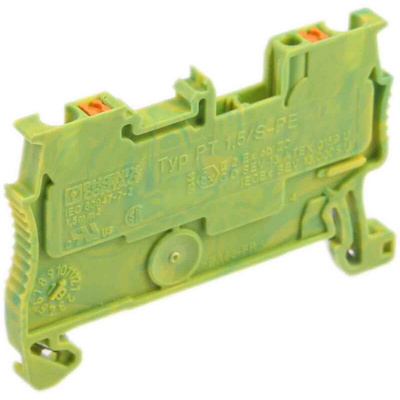

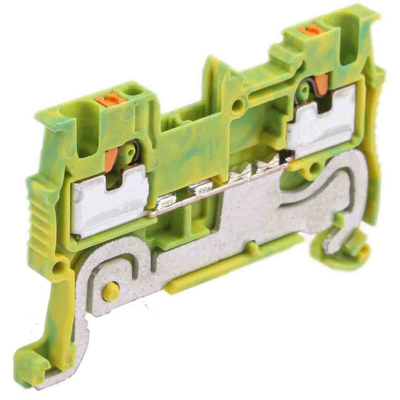

Phoenix Contact Earth Terminal Block, 26 to 14AWG, 0.14 to 1.5mm² CSA - PT 1.5/S-PE - 3208139

This earth terminal block from Phoenix Contact is a compact wiring solution that lets you organise and connect cable conductors in your control cabinet. It’s ideal for use in the railway industry, as well as for machine building or plant engineering. The polyamide insulator has high electrical resistance to eliminate the risk of short circuits or current surges and protect your equipment. The block is grounded to the DIN rail mounting for furtherl safety, while finger-proof terminals add an extra layer of user protection.
This compact device measures just 45 (L) x 30.5 (H) x 3.5mm (W), so it’s ideal for areas where space is tight. It's designed to bridge easily with other products in the PT series so you can tailor your control panel to your needs. The plug-in termination method offers an easy, direct conductor connection and uses 50% less insertion force, reducing wear and tear on wires.

• ATEX compliant for safe use in environments with potentially explosive atmospheres
• Accommodates wires from 26 to 14AWG (0.14 to 1.55mm² CSA) for versatility

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
