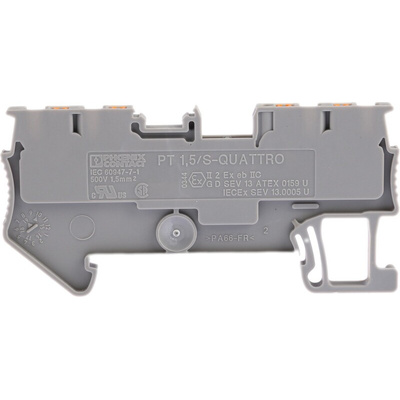

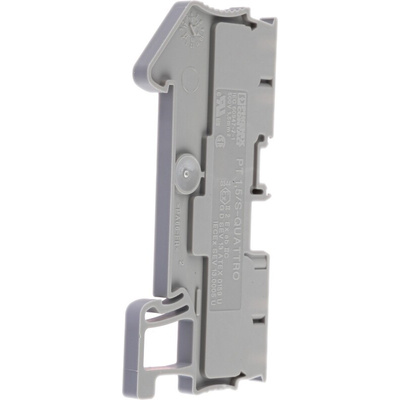

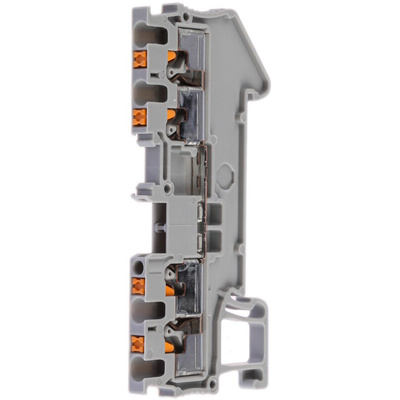

3208197, Phoenix Contact PT 1.5/S-QUATTRO Series Grey Feed Through Terminal Block, 0.14 → 1.5mm², Single-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

Phoenix Contact Feed-Through Terminal Block, 26 to 16AWG, 500V AC/DC - PT 1.5/S-QUATTRO - 3208197

Protect your electrical system from short circuits and overcurrent with this feed-through terminal block from Phoenix Contact. Its front connection method allows for ease of wiring in areas where space is limited.
The unit's push-in connectors allow for quick, tool-free wiring. As the push-in connectors require minimal insertion force, they're easy to use. A robust polyamide (PA) housing ensures resistance to corrosion and wear, so delivers a long service life. The unit is compatible with wires ranging in diameter from 26 to 16AWG (American Wire Gauge), making it a versatile choice.
You'll commonly find this type of terminal block used in railway and plant building applications, lighting controllers and building management systems.

• Accepts solid conductors and conductors with ferrules for versatility
• Compact dimensions of 63.2 (length) x 3.5 (width) x 30.5mm (height) to save space
• Wide operating temperature range of -60°C to +130°C for use in demanding environments
• UL 94-V0 flammability rating means it's self-extinguishing in the event of a fire
• Meets DIN EN 50274 safety standards for low-voltage switchgear, protecting users against direct contact with live parts

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
