3208155, Phoenix Contact PT 1.5/S-TWIN Series Grey Feed Through Terminal Block, 0.14 → 1.5mm², Single-Level, Push In

Phoenix Contact Feed-Through and Multi-Conductor Terminal Blocks

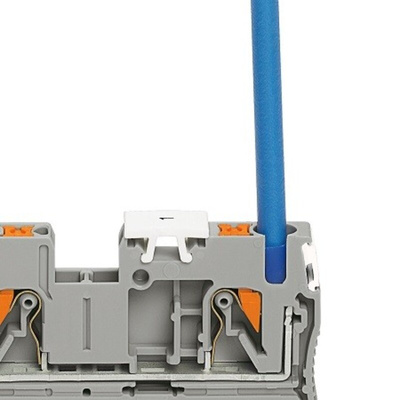

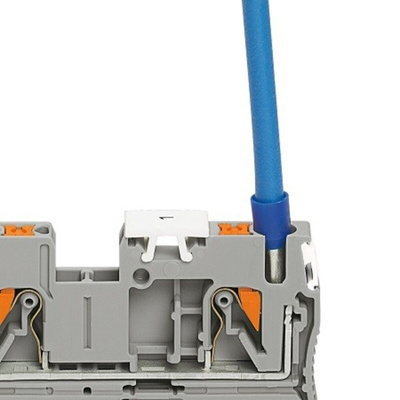

The compact PT series from Phoenix Contact uses the advantages of the CLIPLINE complete system and is characterised by easy, direct conductor connection. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.

PT Series - Features and Benefits

• Can be bridged together easily with multi-conductor and function terminals
• Single, Double and triple levels available
• 50 % less insertion force
• Direct plugging from 0.34 mm²
• Actuation button for disconnecting conductors or wiring small cross sections from 0.14 mm²
• Actuation button can be operated with any kind of screwdriver
• Compact design and front connection facilitate wiring in the smallest of spaces
• Double bridge shaft for an individual power distribution and supply

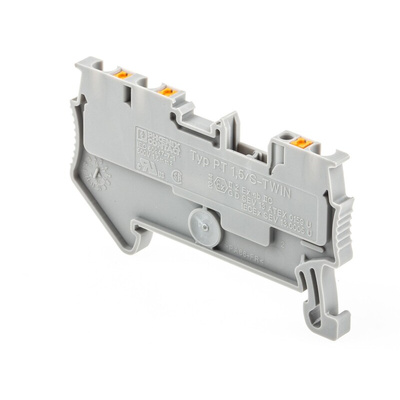

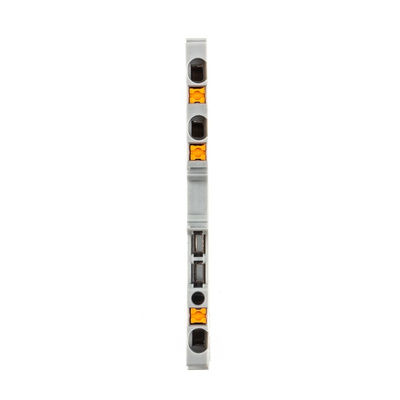

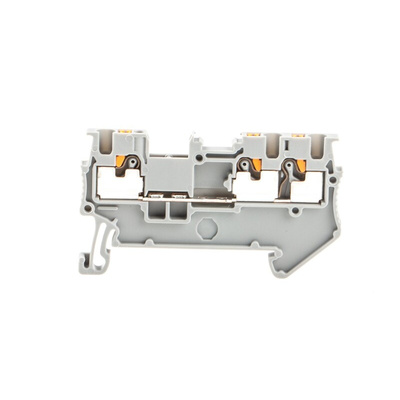

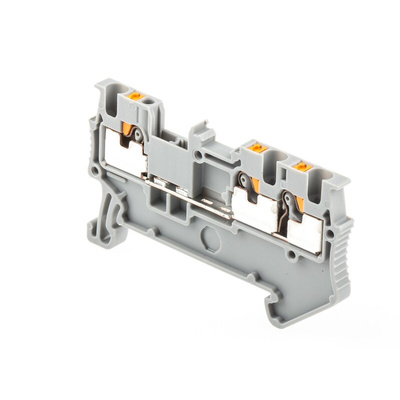

Phoenix Contact Feed-Through Terminal Block, 3 Connections, 26 to 14AWG - PT 1.5/S-TWIN Series - 3208155

Make safe and simple wire-to-wire connections in your control panel using this feed-through terminal block from Phoenix Contact. This single-level component offers space for three connections, making it a versatile option. The push-in termination design lets you quickly connect the wires without any tools and, for added versatility, it can accommodate a broad wire size range between 26 and 14 AWG.
Thanks to its high voltage capacity of 500V and current rating of 17.5A, you can safely use this unit in heavy-duty electrical equipment like railway systems and machine building. For added durability, it has a rated surge voltage of 6kV to withstand current overload. Polyamide insulation is on hand to protect you from shocks in the event of an electrical hazard. A flammability rating of UL 94 V0 means burning stops within 10 seconds, preventing a fire from spreading.

• ATEX certified for safe use in hazardous areas
• Light weight of 4.480g for minimal strain on equipment
• Shock and vibration resistant to withstand demanding operations
• Compact dimensions of 54 (length) x 3.5 (width) x 2.2mm (end cover width) to fit in crowded panels

Push-In Connection Terminal Blocks

The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm² and up.
