2080-SERIALISOL, Allen Bradley Micro 800 Series Isolated Serial Port for Use with Micro800

Allen Bradley MicroLogix Accessories

Allen Bradley offer a range of accessories and parts which are suitable for use with the MicroLogix family of PLC’s, giving you full protection and a control system which is customised to meet your requirements. The MicroLogix controllers offer increased application coverage and superior network communications to keep your automated machine processes running smoothly.

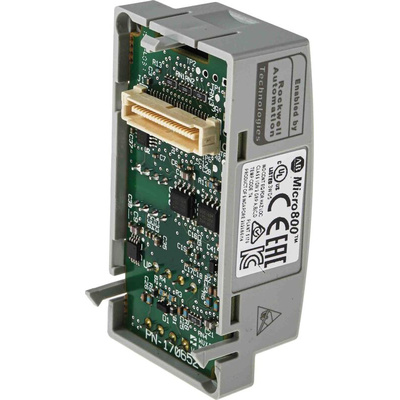

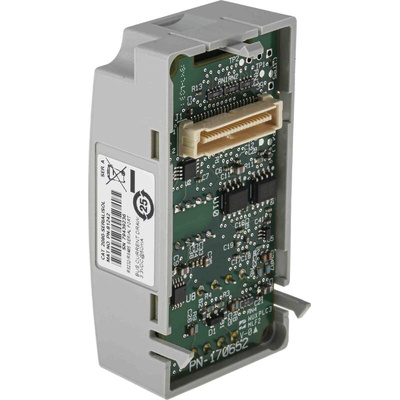

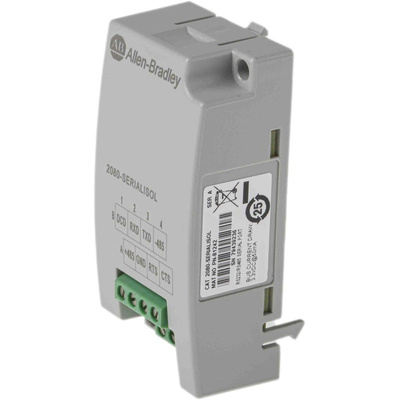

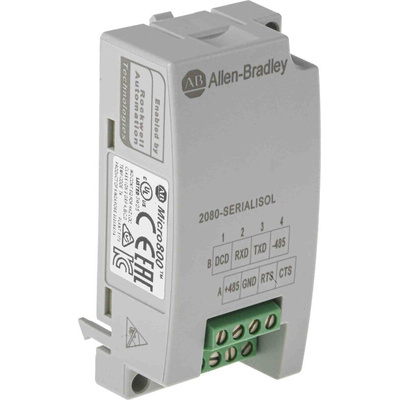

2080-SERIALISOL Isolated Serial Port Plug-in Module

The 2080-SERIALISOL unit is an RS232/485 isolated serial port plug-in module for the Micro800 family of programmable logic controllers. It has an isolated voltage of 500 V ac. Mounting torque is 0.2 Nm (1.48 lb-in). The operating temperature range for this unit is -20 to 65 °C (-4 to 149 °F). Dimensions: 62mm x 31.5mm x 20mm

Features and Benefits:

• Compatible with Micro830
• Adds further serial communications with Modbus RTU and ASCII protocols for more intensive serial communications tasks
• Isolated for increased noise immunity
• Easy installation into the controller by snapping into the module bay and tightening the tapping screw using a screwdriver
• Up to 5 extra serial ports can be added

The MicroLogix family of Programmable Logic Controllers offers excellent control capabilities at a fair price. They can handle a wide range of application types and come in conveniently small sizes to accommodate tight spaces. These handy control units provide superior application coverage with improved network communications.

What is a PLC?

Programmable Logic Controllers (PLC) are complex computers which automate control processes by using programs to communicate electronic signals to machines and devices. In simplified terms, they are usually comprised of three components: A CPU (Central Processing Unit), which is the brain or processor of the system, Inputs, and Outputs. An input module detects signals from things like switches, sensors, and buttons. This is processed by the CPU, which leads to an output relaying the CPU’s instructions to a machine or device. Logic Controller system functions can be expanded by adding extra I/O modules. These devices are widely used in modern industrial automation for controlling machinery, in industries such as packaging, food and beverage production, pharmaceutical, and printing.

Micro 800 RS232_485 Isolated serial plug in module Data Sheet

Micro800 Programmable Controllers Selection Guide

Micro800 PLC Family Brochure

2080-SERIALISOL Dimensions
