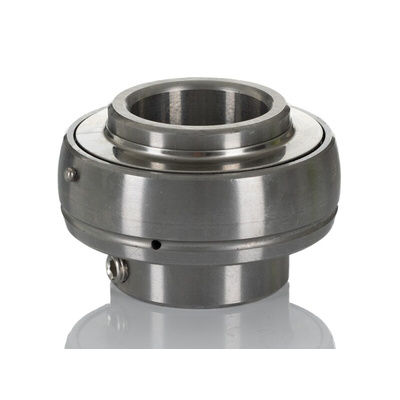

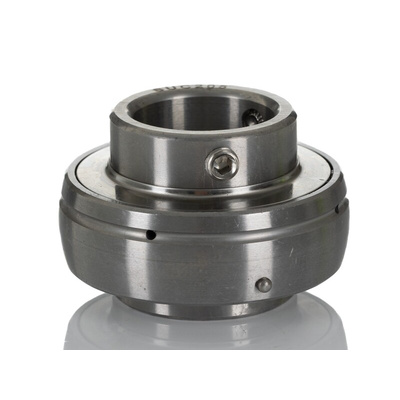

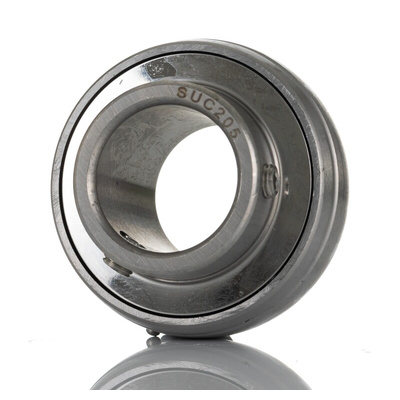

RS PRO Spherical Bearing 25mm ID 52mm OD

RS PRO Spherical Bearing

This spherical bearing from RS PRO can be installed within a bearing housing, or in situ (on a shaft, for example). It can then be locked using the set screw. Made from stainless steel, the bearing is durable and rust-resistant. It has an external diameter of 52 millimetres and an internal diameter of 25 millimetres. It's static load rated up to 710 kgf (kilogram-force), while its dynamic load rating is 1,100 kgf. It weighs 200 gms.

The rod end is part of the stringently tested RS PRO series of quality products. It also meets the standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for safe electrostatic discharge. Spherical bearings such as these are commonly used in a wide range of applications where there's a need to change the axis of rotation, for example in drive shafts, heavy machinery and robotics.

Features and Benefits

• Spherical bearing
• Stainless steel
• Set screws allow you to lock the bearing
• Dynamic load rating of 1,100 kgf
• Static load rating of 710 kgf
• Weight of 200 gms
• Inside diameter of 25 millimetres
• Outside diameter of 52 millimetres
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Small Pack Size: 750-8716
Large Pack Size: 261-2698

Spherical Bearing Insert – Metric (Stainless Steel)
