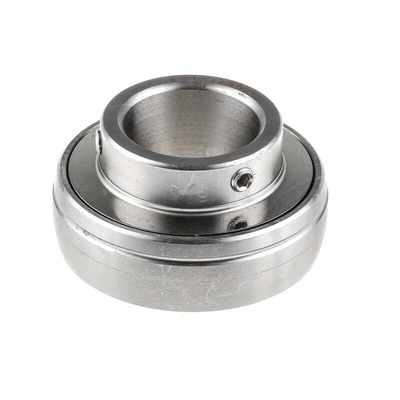

RS PRO Spherical Bearing 30mm ID 62mm OD

RS PRO Spherical Bearing

Use this spherical bearing insert from RS PRO in applications where you need to change the axis of rotation. It can be installed within a bearing housing or in situ (for example on a shaft) and locked using a set screw.

The bearing is made from rust-resistant, hardwearing stainless steel. It has an outside diameter of 62 mm and an inside diameter of 30 mm. The dynamic load rating is 1,520 kgf (kilogram-force) and the static load rating is 1,020 kgf.

As part of the tried and tested RS PRO range, this component has undergone strict quality controls to ensure a safe and reliable product. It complies with the Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007. Spherical bearings of this type are typically used in drive shafts, robotics and a range of heavy machinery.

Features and Benefits

• Spherical bearing
• Made from stainless steel
• Dynamic load rating of 1,520 kgf
• Static load rating of 1,020 kgf
• Weight of 320 g
• Inside diameter of 30 mm
• Outside diameter of 62 mm
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Spherical Bearing Insert – Metric (Stainless Steel)
