RS PRO 4 Hole Flange Bearing Unit 25mm ID, Подшипниковый узел

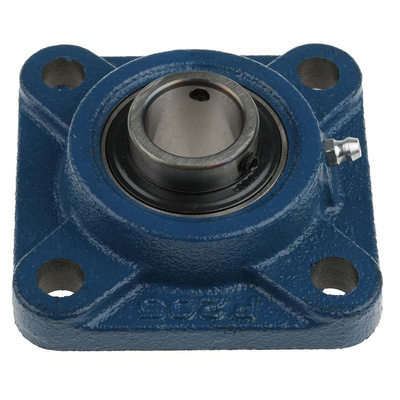

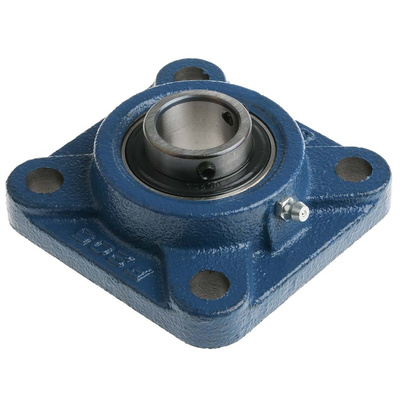

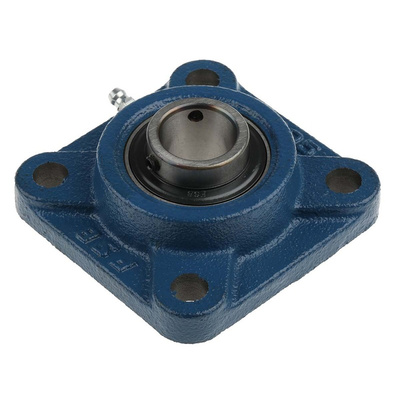

RS PRO 4 Hole Flanged Bearing 25 mm ID

If you need an efficient and reliable way to attach a rotating shaft to a surface, this four-hole cast iron flanged bearing will provide strong perpendicular support while enabling smooth rotary motion.

Installation is both quick and easy, as the square unit has 4 separate mount holes that are designed to allow for a moderate amount of initial misalignment. The flanges lock in place on the attached surface, making this type of bearing more suitable for intermediate axial loads than unflanged bearings. It can also accommodate a range of different bearing types, and it allows for rotary motion at intermediate radial speeds.

These flanged bearing units are often found in industrial and agricultural machinery, such as conveyor belts. They are common in many industries, like construction, forestry and textile manufacture.

Features and Benefits

• Made of cast iron
• Inside diameter of 25 mm
• Length of 95 mm
• Width of 95 mm
• Depth of 35.7 mm
• 4 mount holes
• 12 mm mount hole size
• 70 mm mount hole, centre-to-centre

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

4 Bolt Flange Bearing unit - Metric

RS PRO Datasheet
