RS PRO 4 Hole Flange Bearing Unit 40mm ID, Подшипниковый узел

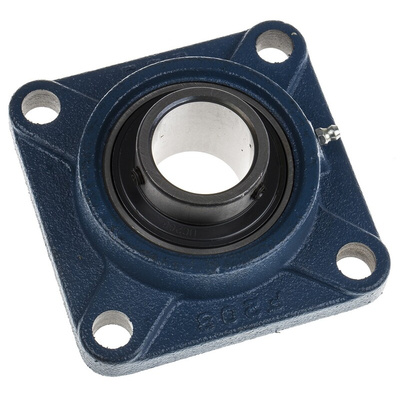

RS PRO Four Hole Flange Bearing Unit 40 mm ID

Make mounting and positioning your ball bearing easy using this flange unit from RS PRO. It supports the rotating shafts of gears, turbines and wheels found inside machinery to ensure they rotate more smoothly.
This component has been designed to work effectively even with a moderate level of initial misalignment, so you don't need to worry about perfectly aligning your joint. It's made from hard-wearing cast iron that won't rust or tarnish, even with longer periods of use. There's a lip on the outer ring of the bearing to hold it securely in place during delicate applications. This unit comes supplied with four pre-drilled mounting holes for a secure fitting that's able to tolerate large axial loads and high vibrations. The four-hole flange bearing unit design is one of the most commonly used in commercial applications. You'll find it in everything from food production machinery to textile equipment.

Features and Benefits

• Flange bearing unit type


• Depth of 51.2 mm


• Inside diameter of 40 mm


• Length of 130 mm


• Width of 130 mm


• Cast iron material


• Four mounting holes


• Mounting hole centre-to-centre of 102 mm


• Mounting hole size of 16 mm

4 Bolt Flange Bearing unit - Metric
