RS PRO 4 Hole Flange Bearing Unit 50mm ID, Подшипниковый узел

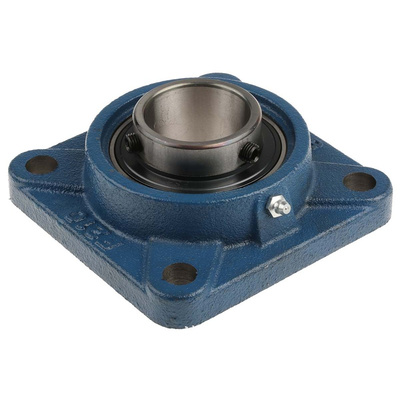

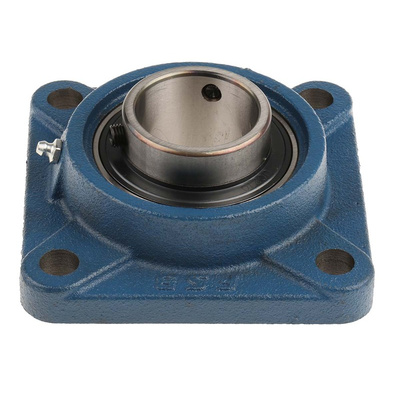

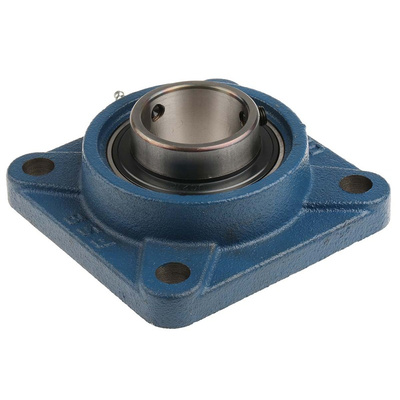

4 Hole Flanged Bearing 50mm ID

This four-hole cast iron bearing unit is an efficient and reliable way to attach a rotating shaft to a surface. Allowing for smooth rotary motion, it also provides strong perpendicular support.

A square unit with 4 separate holes for mounting, this flanged bearing is quick and easy to install. Its design will also allow for some moderate initial misalignment, which means that the set-up is straightforward. The flanges of the unit help it to bear intermediate axial loads by locking in place on the surface it's attached to. Ths flanged bearing also enables rotary motion at intermediate radial speeds, with a range of different bearing types.

Flanged bearing units like this are commonly used in conveyor belts, for example. They're also essential for all kinds of applications in construction and agriculture machinery.

Features and Benefits

• Made of cast iron
• Inside diameter of 50 mm
• Length of 143 mm
• Width of 143 mm
• Depth of 54.6 mm
• 4 mount holes
• 16 mm mount hole size
• 111 mm mount hole, centre-to-centre

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

4 Bolt Flange Bearing unit - Metric

RS PRO Datasheet
