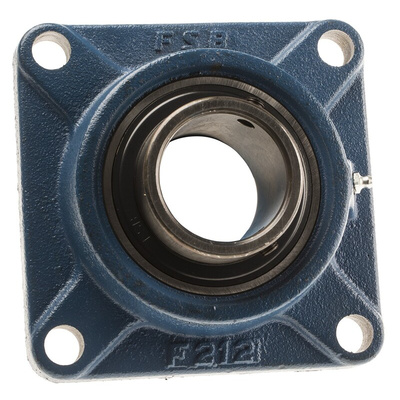

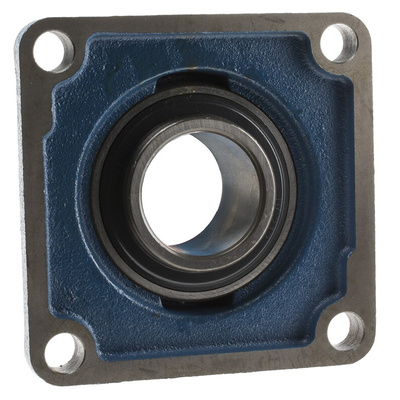

RS PRO Four Hole Flange Bearing Unit 60 mm ID

Ensure robust support and smooth rotation for the rotating shafts of the wheels, gears and turbines found inside your machinery with this four-hole flange unit from RS PRO. It's a handy component that lets you mount and position your ball bearing accurately and easily.

This component is designed to allow for a moderate degree of initial misalignment without negative impacts to performance. It's made from durable cast iron that won't rust or tarnish, so it offers a long service life, even in outdoor or harsh indoor environments. There's a lip on the outer ring of the bearing that ensures it stays in place during more delicate jobs.

The unit has four pre-drilled mounting holes, giving you a secure mount that can withstand large axial loads and high vibrations. This flange bearing is well-suited to a range of commercial applications, including textile equipment, food processing lines and belt drives in heating, ventilation and air conditioning (HVAC) systems.

Features and Benefits

• Flange-bearing unit type


• Depth of 68.7 mm


• Inside diameter of 60 mm


• Length of 175 mm


• Width of 175 mm


• Cast iron material


• Four mounting holes


• Mounting hole centre-to-centre of 143 mm


• Mounting hole size of 19 mm

4 Bolt Flange Bearing unit - Metric
