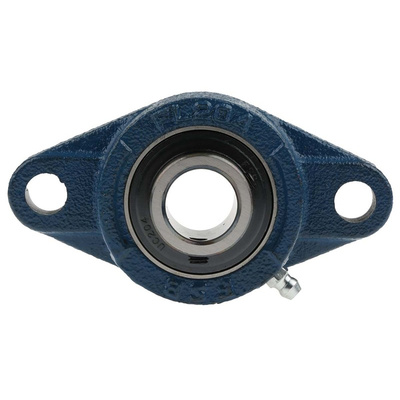

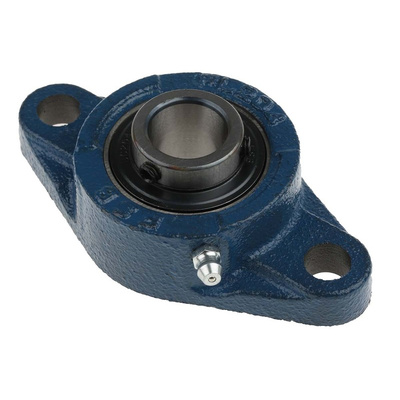

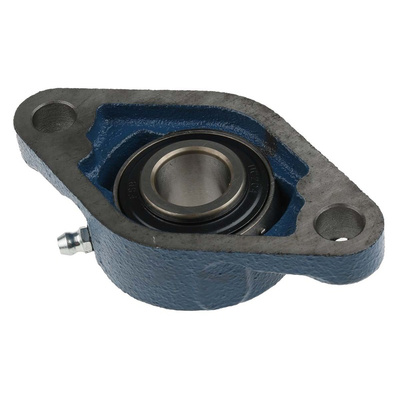

RS PRO 2 Hole Flange Bearing Unit 20mm ID, Подшипниковый узел

2 Hole Flanged Bearing 20 mm ID

If you need to attach a rotating shaft to a surface, this cast iron bearing unit is a highly effective way to set it up. It provides strong perpendicular support and also allows for smooth rotary motion.

A wing-shaped unit with 2 holes for mounting, this strong bearing is simple to install and reliable. The design accommodates some moderate initial misalignment. That makes this flanged bearing adaptable and cuts down on its installation time. A bearing like this is better suited to supporting intermediate axial loads than regular unflanged bearings, due to its winged shape. The unit can also support intermediate radial speeds with a range of different bearing types.

This type of flanged bearing is useful for industrial machinery, particularly in construction, agriculture and textile manufacture. Conveyor belts are a typical example of its everyday use.

Features and Benefits

• Made of cast iron
• Inside diameter of 20 mm
• Length of 113 mm
• Width of 60 mm
• Depth of 33.3 mm
• 2 mount holes
• 12 mm mount-hole size
• 90 mm mount hole centre-to-centre
