RS PRO 2 Hole Flange Bearing Unit 30mm ID, Подшипниковый узел

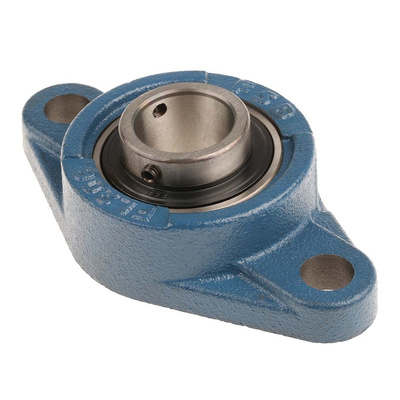

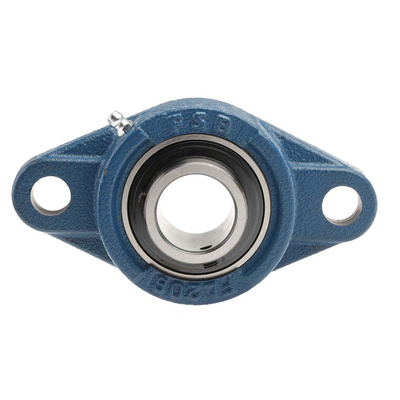

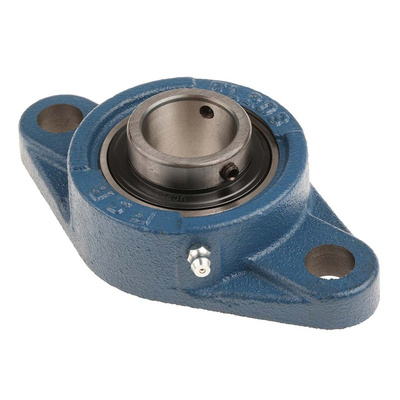

RS PRO 2 Hole Flanged Bearing 30 mm ID

Providing strong perpendicular support while enabling smooth rotary motion, this cast iron flanged bearing unit is a simple and effective way to attach a rotating shaft to a surface.

The wing-shaped unit has 2 holes for mounting and is designed to allow for a moderate amount of initial misalignment. This cuts down on installation time and makes set-up straightforward and reliable. Because of its winged shape, this type of bearing can accommodate intermediate axial loads better than an unflanged bearing. The unit can also support a range of different bearing types and intermediate radial speeds.

Flanged bearings like this are widely used in industrial machinery, such as conveyor belts, and in industries such as construction, agriculture, and textile manufacture. We've given these bearing the RS PRO seal of approval, which means you can be confident of their quality and consistency.

Features and Benefits

• Made of cast iron
• Inside diameter of 30 mm
• Length of 148 mm
• Width of 80 mm
• Depth of 40.2 mm
• 2 mount holes
• 16 mm mount-hole size
• 117 mm mount hole centre-to-centre

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
