RS PRO 2 Hole Flanged Bearing 25 mm ID

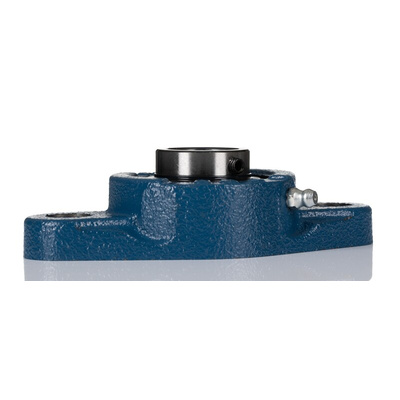

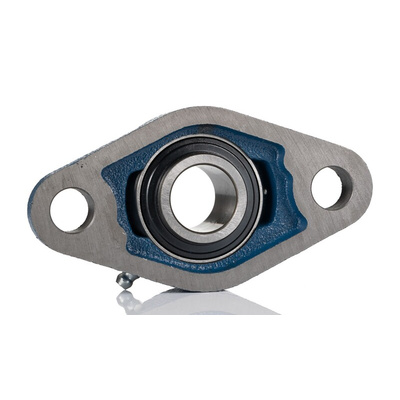

This cast iron bearing unit is a highly effective way to attach a rotating shaft to a surface. It provides strong perpendicular support while allowing smooth rotary motion.

The wing-shaped flanged bearing unit has 2 mounting holes and allows for a moderate amount of initial misalignment, so it's adaptable, as well as being quick and easy to install. The wing shape makes it better able to support intermediate axial loads than unflanged bearings. The unit can also accommodate intermediate radial speeds with a range of types of bearing.

This type of flanged bearing is commonly used in conveyor belts and other industrial machinery. You'll find it in a range of industries, such as construction, agriculture and textile manufacture. Part of the RS PRO range, this product is thoroughly tested for reliable quality.

Features and Benefits

• Made of cast iron
• Inside diameter of 25 mm
• Length of 130 mm
• Width of 68 mm
• Depth of 35.7 mm
• 2 mount holes
• 16 mm mount-hole size
• 99 mm mount hole centre-to-centre
