RS PRO Pillow Block Bearing -, 12mm ID

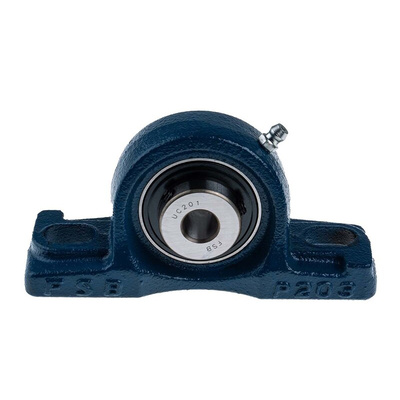

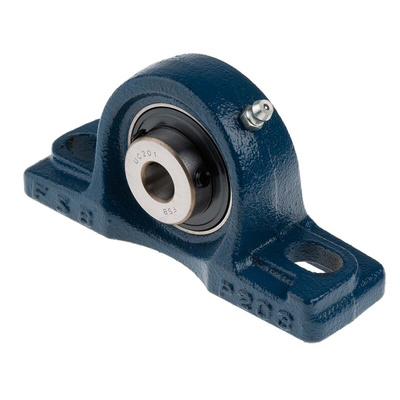

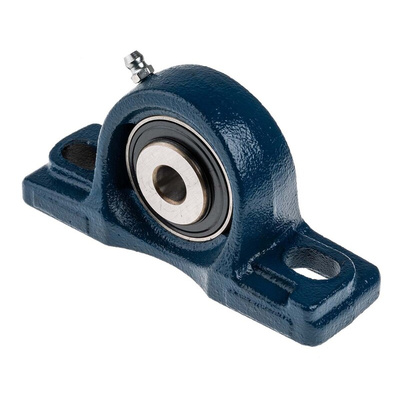

RS PRO Pillow Block Bearing 12 mm ID

Pillow block bearings are typically found in industrial applications, where they're used to support a rotating shaft. This two-bolt pillow block bearing housing from RS PRO is well-suited for use with low load-bearing systems such as fans, gearboxes and electric motors in conveyor systems and agricultural machinery.

The dimensions of this pedestal-mounted bearing are 62 mm x 31 mm x 127 mm, while the inside diameter measures 12 mm. It's been constructed to create the least possible amount of friction within your equipment. The robust bearing housing is made from cast iron, so you can be sure of a long-lasting product.

Part of our tried and tested RS PRO range, this bearing housing has undergone a stringent quality control process for safety and reliability. It meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 control standards for safe limits of electrostatic discharge.

Features and Benefits

• Two-bolt pillow block bearing
• Mount hole size of 13 mm
• Offers a low-friction solution
• Cast iron housing
• Overall height of 62 mm
• Depth of 31 mm
• Length of 127 mm
• Inside diameter of 12 mm
• Mount hole measurement centre-to-centre is 95 mm
• Centre height of 30.2 mm
• Meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
