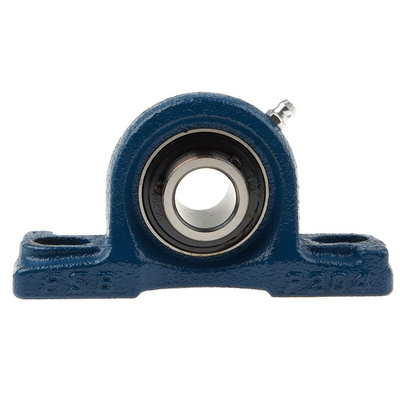

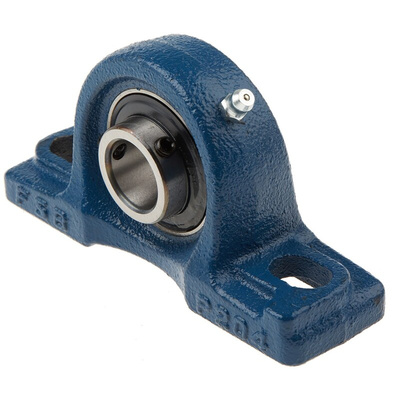

RS PRO Pillow Block Bearing -, 20mm ID

Pillow Block Bearing 20 mm ID

The RS PRO pillow block bearing – also known as a 'plummer block' bearing – is a kind of bearing housing. It's often found within industrial and commercial equipment that relies on a rotating shaft. Examples includes conveyor systems, packaging equipment and agricultural machinery with low load-bearing requirements such as gearboxes, fans and electric motors.

This pedestal-mounted bearing housing has dimensions of 65 mm x 31 mm x 127 mm. It's been designed to create minimal friction within your equipment. For security, the shaft and insert features a two-bolt set-up, instead of one.

As part of our top-quality RS PRO range, it's been tested by our engineers for both durability and consistency. You'll also find it's been manufactured to include a hardwearing cast iron bearing housing that will last for years to come.

Features and Benefits

• Two-bolt pillow block bearing
• Mount hole size of 13 mm
• For a low-friction solution
• Cast-iron housing
• The bearing housing has dimensions of 65 mm x 31 mm x 127 mm
• Inside diameter of 20 mm
• Mount hole measurement centre-to-centre 95 mm
• Centre height of 33.3 mm

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

2 Bolt Pillar bearings SL Series – Metric

RS PRO Datasheet
