RS PRO Pillow Block Bearing -, 25mm ID

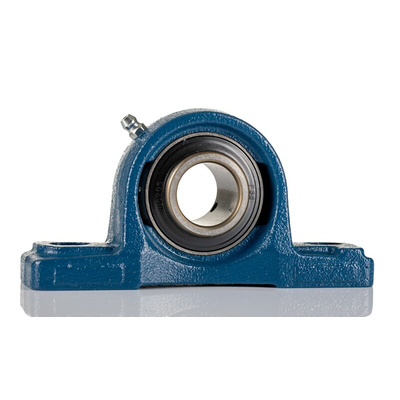

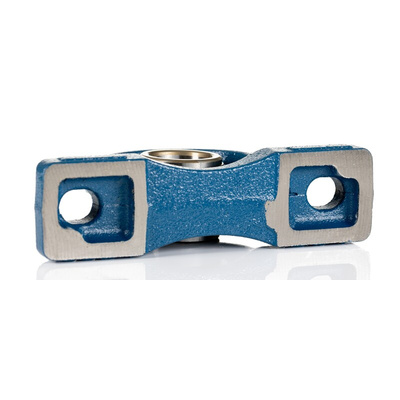

RS PRO Pillow Block Bearing 25 mm ID

Pillow block bearings like this 25 mm model from RS PRO are used to support a rotating shaft. Also called plummer blocks, they comprise a cast iron mounting block with an inner bearing.

This pedestal-mounted bearing has an overall height of 71 mm and a depth of 34 mm, and is 140 mm long. It's been designed to minimise as much friction as possible within your equipment. The shaft and insert are supplied with two bolts, which provides more security than a single bolt set-up.

Part of the tried and tested RS PRO range, this product has undergone stringent quality controls to ensure a hardwearing, safe product with a long lifetime.

Pillow blocks are used for a great many commercial and industrial applications, including agricultural machinery and conveyor systems.They are especially suited to applications with low load-bearing requirements, such as gearboxes and fans.

Features and Benefits

• Two-bolt pillow block bearing
• Mount hole size of 13 mm
• For a low-friction solution
• Cast-iron housing
• The bearing housing has dimensions of 71 mm (H) x 34 mm (D) x 140 mm (L)
• Inside diameter of 25 mm
• Mount hole measurement centre-to-centre 105 mm
• Centre height of 36.5 mm
