RS PRO Pillow Block Bearing -, 30mm ID

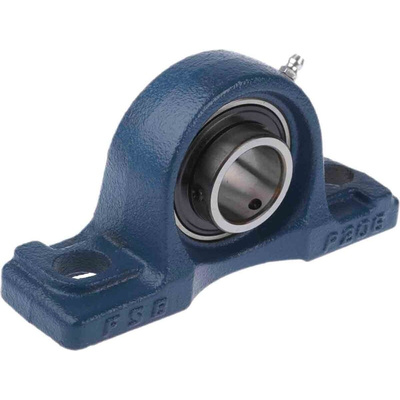

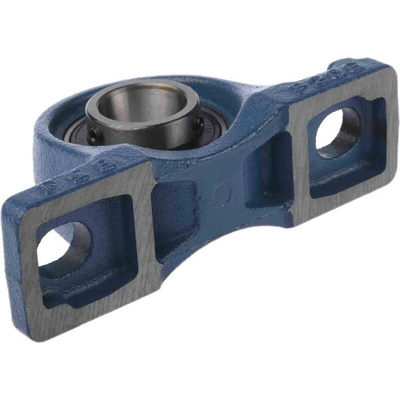

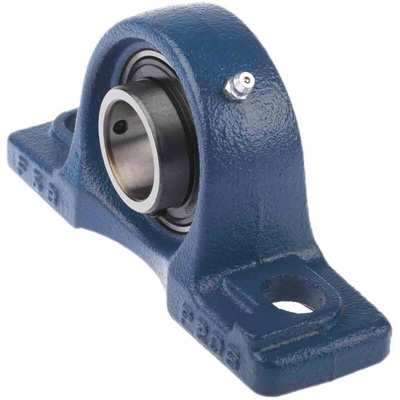

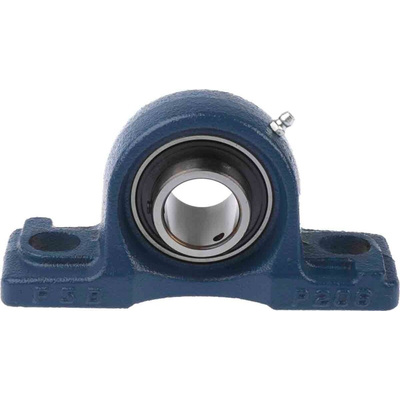

RS PRO Pillow Block Bearing 30 mm ID

Pillow blocks are ideal for supporting rotating shaft applications, particularly those with low load-bearing requirements such as electric motors and gearboxes. This model from the quality RS PRO series has an inside diameter of 30 mm. It features a two-bolt set-up that's more robust than a single bolt.

Also known as plummer blocks, pillow blocks are commonly used with conveyor systems, agricultural machinery and packaging applications. Their design keeps friction to a minimum within your costly equipment.

This bearing housing has a pedestal mounting. It's 83 mm high, 38.1 mm deep and 165 mm long. The cast iron material is incredibly hardwearing and resilient, so you can expect a long lifetime.

This product has been exhaustively tested by our engineers for quality and safety as part of our RS PRO range.

Features and Benefits

• Two-bolt pillow block bearing
• Mount hole size of 17 mm
• Offers a low-friction solution
• Cast iron housing
• Overall height of 83 mm
• Length of 165 mm
• Depth of 38.1 mm
• Inside diameter of 30 mm
• Mount hole measurement centre-to-centre is 121 mm
• Centre height of 42.9 mm
• Meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

2 Bolt Pillar bearings SL Series – Metric

RS PRO Datasheet
