RS PRO Pillow Block Bearing -, 40mm ID

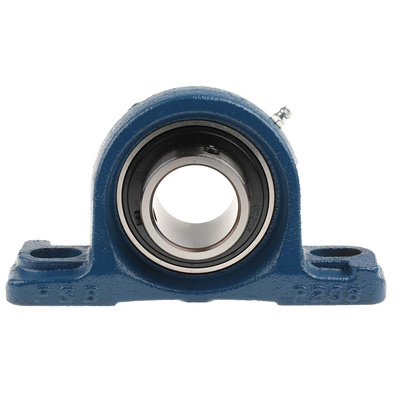

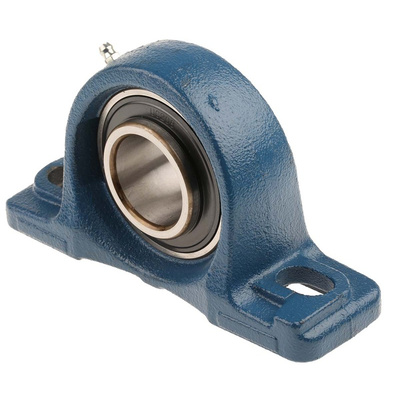

RS PRO Pillow Block Bearing 40 mm ID

Pillow block bearings like this two-bolt model from RS PRO are also known as plummer blocks. A special type of bearing housing made from heavy-duty cast iron, they're used to support rotating shafts in industrial equipment like agricultural or packaging machines.

The bearing housing has a pedestal mount. Offering a low-friction solution for your light load applications, the balls inside the bearing roll when the shaft rotates. The shaft and insert on this model feature two bolts rather than one, which makes it more secure.

This pillow block bearing has an inside diameter of 40 mm and a mounting hole measuring 17 mm. Part of the quality RS PRO series, it's been stringently tested for safety and reliability. It also complies with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for safe levels of electrostatic discharge.

Features and Benefits

• Two-bolt pillow block bearing
• Mounting hole size of 17 mm
• Offers a low-friction solution
• Cast iron housing
• Overall height of 98 mm
• Depth of 54 mm
• Length of 184 mm
• Inside diameter of 40 mm
• Mount hole measurement centre-to-centre is 137 mm
• Centre height of 49.2 mm
• Meets Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

2 Bolt Pillar bearings SL Series – Metric

RS PRO Datasheet
