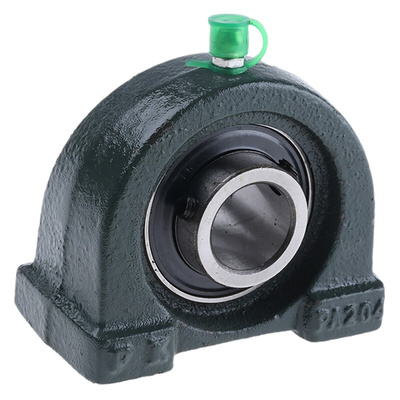

RS PRO Pillow Block Bearing -, 20mm ID

RS PRO Pillow Block Bearing 20 mm ID

You can use this RS PRO 20 mm pillow-block bearing to support a rotating shaft with minimal maintenance. It's designed for low-loading conditions that don't call for the extremely high strength of a plummer block. You'll find it's commonly used in commercial environments, including agricultural maintenance facilities, shipping yards and industrial plants.
There's a bearing secured snugly inside the mounting block and it has pre-drilled holes to ensure it's easy to attach to equipment. The bearing is fitted with a durable synthetic rubber seal, so that dirt and water don't seep into your machinery and cause damage. This time-saving component also comes greased and ready to be installed.
The cast-iron pillow-block bearing has been tested for reliability and consistency. It's commonly used with packaging equipment, conveyor systems and heat-treatment facilities.

Features and Benefits

• Pillow-block bearing unit type
• Centre height of 30.2 mm
• Depth of 31 mm
• Inside diameter of 20 mm
• Length of 76 mm
• Overall height of 62 mm
• Cast-iron material
• Mounting hole centre-to-centre of 52 mm
• Mounting hole size of 10 mm

2 Bolt Pillow block Tapped base – Metric
