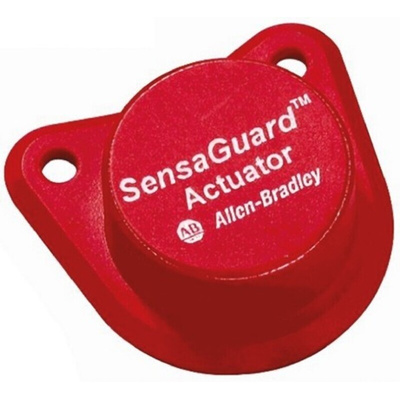

Allen Bradley Guardmaster 440N-Z30UPT Actuator, For Use With SensaGuard 440N Safety Switch

SensaGuard 440N Cylindrical Non-Contact Switch

The SensaGuard Non-Contact Switch is PLe, SIL 3 and Cat 4 rated and is intended for use with sliding, hinge or lift-off machine guard doors. These safety switches are based on RFID (Radio Frequency IDentification) technology for coding and inductive technology for sensing. Combined with a large sensing range for optimum operation and tolerance to misalignment, these non-contact switches are a cost-effective solution to a wide range of industrial safety applications.

No dedicated controller required for its RFID coding security
Switches can be connected in series with other devices (e.g. Light Curtains, E-stops, interlock switches)
PLe, SIL 3, Cat 4 rating maintained with multiple units connected in series
Can be connected to standard safety relays, SmartGuards and safety I/O blocks
They provide three different types of PNP output including one auxiliary PNP
Equipped with an LED to indicate the device status and any faults
IP69K environmental rating

Note

Stainless steel version suitable for use in harsh environments.

Standards

IEC60947-5-3, IEC 61508, EN954

Supplied with

Actuator.

Non contact safety switches SensaGuard Data Sheet

Machine Guarding and Safety Range Overview
