440R-EM4R2D, Allen Bradley Guardmaster 440-R Series Output Module, 0 Inputs, 5 Outputs, 24 V dc, 4NO, Модуль

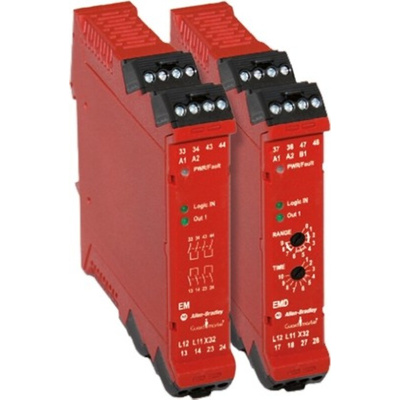

EM/EMD, Safety Relay Expansion Module

Easily add 4 N.C. instantaneous (EM) or delayed (EMD) outputs to a system
Single wire safe connection expands system without using any outputs of base module
Self-monitoring outputs
Time delay configured from 0-300 s
Timer functions include: on delay, off delay and jogging
Can replace the following Guardmaster safety relays: MSR132E, MSR132ED

Allen Bradley Guardmaster Output Module, Ethernet Interface, DIN Rail Mounting - 440R-EM4R2D

Looking for a component to enhance the safety of your industrial automation processes? Choose this output module from Rockwell Automation's Allen Bradley Guardmaster range. It's a safety relay module that monitors the circuitry in your system and detects faults to prevent hazardous overloads and short-circuiting. You can use it for low-power applications due to its supply voltage of 24V DC. The device has five outputs, making it a versatile choice that boosts your workflow. Screw terminals mean installation is simple and there's no need for specialist equipment.

Features and Benefits

• MTTFd of 165 years ensures a long service life
• IP40 rating indicates protection from tools and small wires bigger than one millimetre
• DIN rail compatible mounting for simple setup

Standards and Certifications

• IEC 60204-1
• EN ISO 13849-1
• EN ISO 12100
• IEC 61508
• CE
• UL
• TUV

Can I use this module in harsh conditions?

IEC 60204-1
EN ISO 13849-1
EN ISO 12100
IEC 61508
CE certified
UL listed
TUV certified

Yes, a tough polyamide casing offers hard-wearing protection against mechanical stress. The unit operates in a temperature range between -5°C and +55°C, so it functions safely in demanding environments.
