440R-S13R2, Rockwell Automation Dual-Channel Light Beam/Curtain, Safety Mat/Edge, Safety Switch/Interlock Safety Relay, 24V dc, 3, Реле безопасности

Rockwell Automation Guardmaster 440R SI/CI - Single Input Safety Relays

Ensure easier installation and a simplified yet high-performance safety control system with the 440R SI/CI Guardmaster Safety Relays by Rockwell Automation. These relays are perfectly suited for simple safety functions using one dual or single channel safety device, and for global E-stop function in combination with another GSR relay.

With the Guardmaster family of safety relays, many important components in a control system such as safety interlock switches, pressure sensitive safety mats, emergency stop devices, and OSSD devices such as safety light curtains are compatible with the same relay without added configuration, saving you time and money. These 440R SI/CI Safety Relays help you to minimise downtime through reliable, fast fault detection which prevents risk of damage to machinery and protects personnel from injury.

Features and Benefits:

• Compact solution which saves energy and space on DIN rail
• TÜV-approved single rotary switch configures auto/manual or monitored manual reset
• Universal inputs are fully compatible with interlocks, light curtains, safety mats, E-stops, and SensaGuard
• Single wire safety output connects to control other safety relays e.g. as Global E-Stop and expand with output modules while maintaining SIL 3, PL
• Suitable for applications up to PLe, Cat. 4 per ISO 13849-1 and SIL CL3 per IEC 62061
• Terminals are grouped together for power, inputs and outputs for clear connection

Note:

Terminals on the CI model are arranged in a similar layout to legacy Guardmaster MSR safety relays.

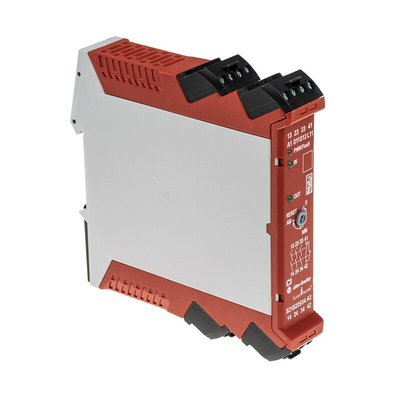

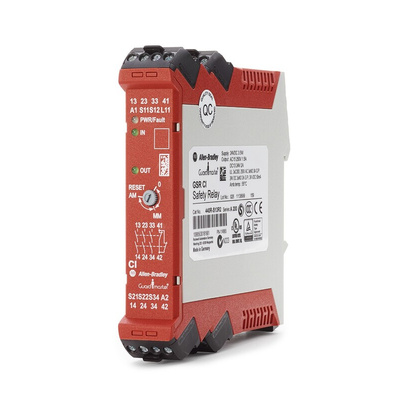

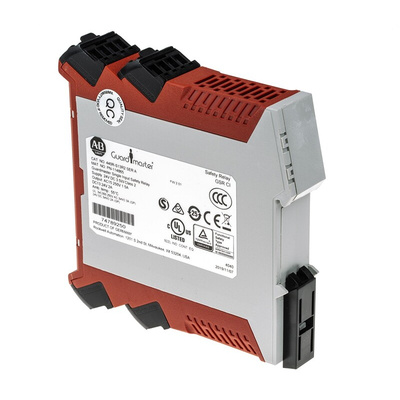

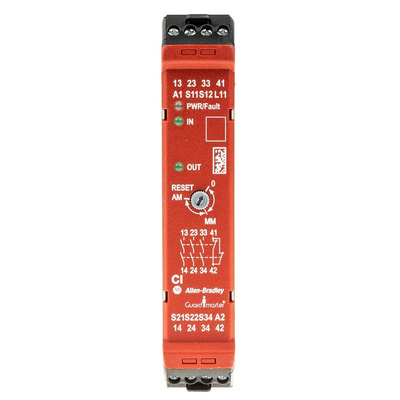

440R-S13R2 Compatible Input Safety Relay (CI)

The 440R-S13R2 Safety Relay features 1 dual channel universal input, 3NO immediate safety outputs and 1NC solid state immediate auxiliary output. It has a power supply of 24V dc and removable terminals. For ease-of-installation and system flexibility this unit has 1 single wire safe output. Reset is configured Automatic/Manual or Manual Monitored Reset, providing optimal versatility for your application. This safety relay is also compact and can be DIN rail mounted (22.5 mm) to save space and energy. The CI model has LED indicators, 1NC, optical bus for diagnostics. The terminal layouts and configuration are consistent to ensure seamless installation. It has an environmental protection rating of IP40 for the enclosure, and IP20 for terminal protection. The operating temperature range is -5 to +55 ° (23…131 °).

What are Safety Relays?

Safety relays are devices which are used to monitor for errors or faults in a machine safety system, and can implement safety commands when they detect these errors to bring the risk down to an acceptable level. By doing this, they defend against hazards which could cause injury to personnel and damage to machinery. Single function relays manage one specific function, while multi-function relays can oversee different activities. Safety relays can also be connected to each other. They are often used in industrial environments such as factories, as part of a safety control circuit for dangerous machines. Typical applications include: safety mats, emergency stop push-buttons, light curtains, and magnetic switches. Rockwell Automation offer high-quality, reliable safety relays which give exceptional performance and ensure maximum protection and productivity.
