FTDI Chip, 3.3 V USB to UART Cable - C232HD-DDHSP-0

FTDI Chip USB To UART Cable

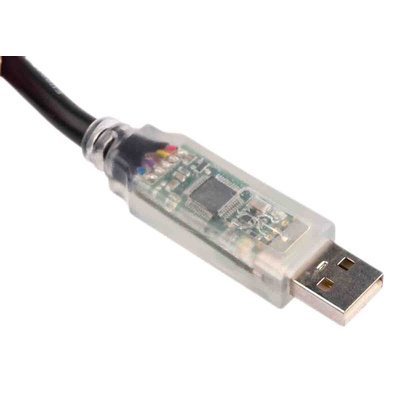

The FTDI chip USB 2.0 high-speed to UART cable incorporates FTDI’s FT232H USB to UART interface IC device that handles all the USB signalling and protocols. The cable provides a fast and simple way to connect devices with 3.3V digital interfaces to USB. This cable contains a small internal electronic circuit board, utilising the FT232H, encapsulated into the USB connector end of the cable. It has a single pole, receptaclex10 end connector.

Features and Benefits

Adjustable receive buffer timeout
Asynchronous UART transfer data rate up to 12Mbaud
Fully assisted hardware or X-On/X-Off software handshaking
Low operating and USB suspend current
Low USB bandwidth consumption
Maximum output of 450mA at 5VDC on VCC
Operating temperature ranges between -40°C and 85°C
Receive and transmit buffers of 1kb for high data throughput
Support for USB suspend and resume
Ten core cable with length of 1.8m
Transmit and receive LEDs
UART interface support for 7 or 8 data bits,1 or 2 stop bits and odd/even/mark /space/no parity
UHCI/OHCI/EHCI host controller compatible
USB 2.0 Hi-Speed (480Mbps) and full speed (12Mbps) compatible
USB bus powered
USB Type A connector for direct connection to USB host or hub

Applications

Electronic systems
Prototyping platform for USB interface on
Rapid USB integration into existing
Set Top Box PC - USB interface
Upgrading legacy peripherals to USB
USB bar code readers
USB digital camera interface
USB hardware modems
USB industrial control
USB instrumentation
USB Medical applications
USB to RS232/RS422/RS485 converters
USB wireless modems

Certifications

CE
FCC approved
