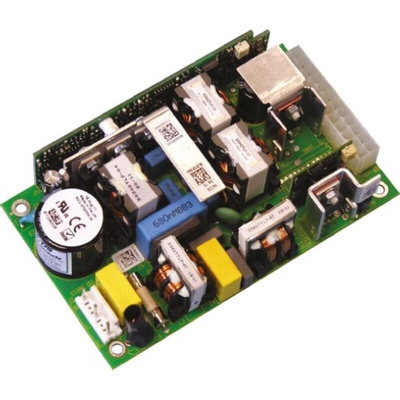

TDK-Lambda Switching Power Supply, NVM1-1T000-S1, 12V dc, 15A, 180W, 1 Output, 90 → 264V ac Input Voltage, Источник питания

TDK-Lambda 180W Switch Mode AC-DC Medical Power Supply - NV-Power Medical Series

180W open frame and enclosed switch mode AC-DC medical power supplies with a low leakage current designed for BF applications. These switch mode AC-DC medical power supplies have dual outputs and offer a high efficiency and power density, have a 5 x 3 inch footprint and can be used within I U applications. Typical applications for these 180W AC-DC medical power supplies include medical, life sciences, laboratory, instrumentation, automation, security, network servers and routers, broadcast and ATE.

Reinforced input to output Isolation for IEC60601
Medically approved
Low leakage current: 80μA max at 120Vac (60Hz), 170μA max at 240Vac (60Hz)
5 x 3 inch footprint
Standby supply: 12V / 0.2A, below 1W standby power
Remote on/off
High efficiency
High power density (9.3W/in³)
Fits 1 U applications
Short circuit, overvoltage and over temperature protection
POWER GOOD signal
Dual fusing
Standard vertical connector
EMC Compliance: EN55011, EN55022: (as per CISPR.11/22) Class B, FCC47 part 15 subpart B (2005)
Harmonic Current Compliance: EN61000-3-2 Class A

Note

Part numbers ending in 'C' have a 'U' chassis and cover
Derate each output by 2.5% per °C with 2.0m/s air blown from input to output

Standards

Standards: EN 60950-1, UL 60950-1, CSA 22.2 No 60950-1, IEC 60950-1, IEC 60601-1, EN 60601-1, UL 60601-1

Switch Mode - TDK-Lambda

180W Switch Mode AC-DC Medical Power Supply - NV-Power Medical Series

Datasheet - NVM175
