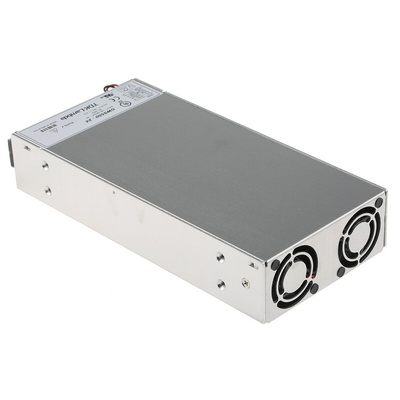

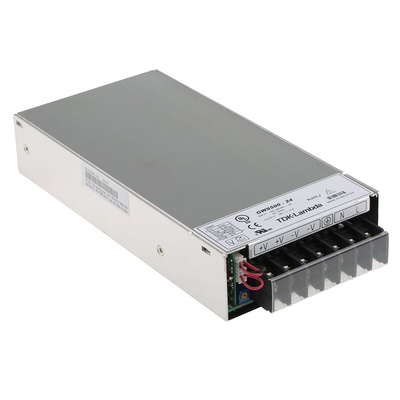

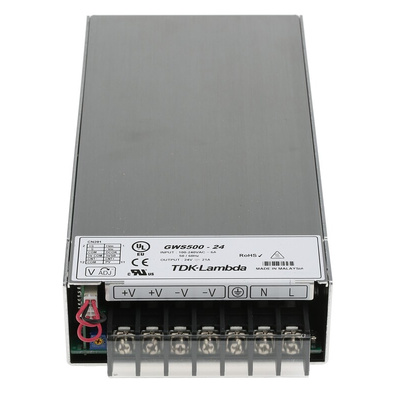

TDK-Lambda Switching Power Supply, GWS500-24, 24V dc, 21A, 504W, 1 Output, 120 → 373 V dc, 85 → 265 V ac, Источник питания

TDK-Lambda Switch Mode Power Supply

The TDK-Lambda GWS500 series 504W single output AC to DC embedded switch mode power supply has an output current rating of 21A at 24VDC. It has a universal input supply voltage rating from 85VAC to 264VAC and 120VDC to 373VDC. This switch-mode AC-DC power supply has a compact design is convection cooled and offer a high power density. It has low standby power and also designed to target all ErP compliant applications.
Note:
Power derates: above 50°C.

Features and Benefits

High efficiency of up to 90%
Targets all ErP compliant applications
Suitable for use with 1 U racking
Wide range AC input
Overcurrent
Overvoltage and overtemperature protection
Remote sensing
Remote ON/OFF
Standby input power draw is less than 0.5W
Standby 5V ast 0.3A
DC GOOD indication

Applications

Industrial
Test
Communications
Broadcasting

Certifications

UL60950-1
CSA C22.2 No.60950-1-07 (2nd edition)
EN60950-1
IEC60950-1 (2nd edition)
CE certified
UL approved
EN55022-B
FCC-B
EN61000-3-2 (typical PF 0.98/0.95)
