2865366, Phoenix Contact 3RS7020 Series Signal Conditioner, Current Input, Current Output, 19.2 → 30V dc Supply, ATEX

MACX MCR-SL-RPSSI-I Series Repeater Power Supply / Signal Conditioner

The intrinsically safe interface blocks of the MACX Analog Ex series offer the widest range of functions in the narrowest design.

Ex-i signal conditioner for many applications
Electrical 3-way isolation
Screw or spring-cage connections are available
IP20 protection
Width only 12.5 mm

Approvals

CE

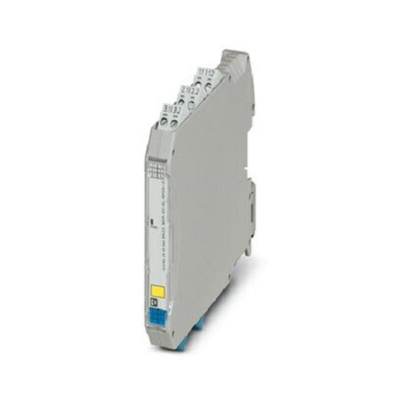

Phoenix Contact Signal Conditioner, 1 Input, 2 Outputs - MACX MCR-EX-SL-RPSSI-2I - 2865366

This signal conditioner from Phoenix Contact converts electrical signals from a device in a hazardous location to two loads in a safe area. It enables the output loads to operate with safer currents, minimising the risk of electrical hazards. It's compatible with HART (highway addressable remote transducer) communication, which supports bi-directional transmission of digital operating signals over analogue wiring. This means it has backwards compatibility with legacy machines for convenient use.
For versatility and ease of setup, you can securely connect the wires using a plug-in screw or the spring-cage termination method. The unit also features integrated sockets for simple connection of the HART communicator. You can attach it to a DIN rail for ease of installation. The PA 66 housing material is flame-retardant and wear-resistant for durability in harsh environments. You'll often find this type of device used in pressure and temperature sensing applications.

• IP20 (ingress protection) rating means it's touch-proof and protected against objects larger than 12mm in size
• Wide operating temperature range between -20°C and +60°C for use in demanding environments
• ATEX certified for safe use in potentially explosive environments
• Green LED indicator for easy status monitoring

Sig Conditioner Ex-I Iso Amp HART SIL2
