2865984, Phoenix Contact 2 Channel Galvanic Barrier, Isolating Amplifier, NAMUR Sensor, Switch Input, Relay Output, ATEX

MACX MCR-SL-RPSSI-I Series Repeater Power Supply / Signal Conditioner

The intrinsically safe interface blocks of the MACX Analog Ex series offer the widest range of functions in the narrowest design.

Ex-i signal conditioner for many applications
Electrical 3-way isolation
Screw or spring-cage connections are available
IP20 protection
Width only 12.5 mm

Approvals

CE

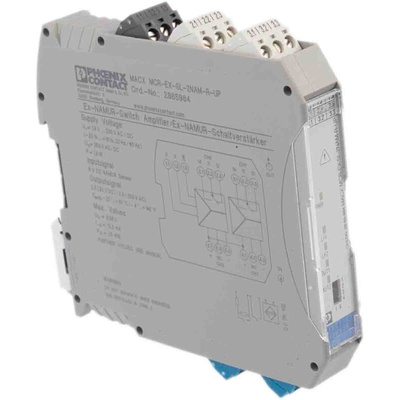

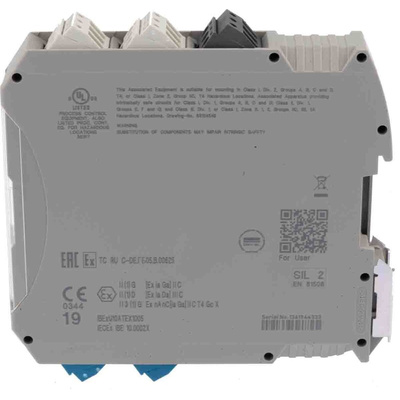

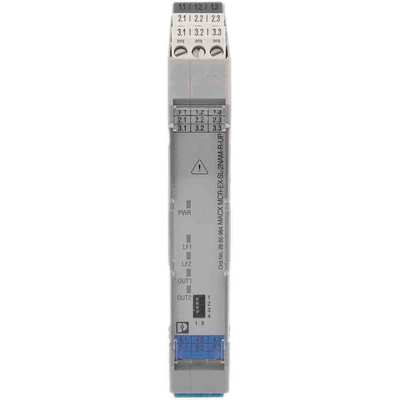

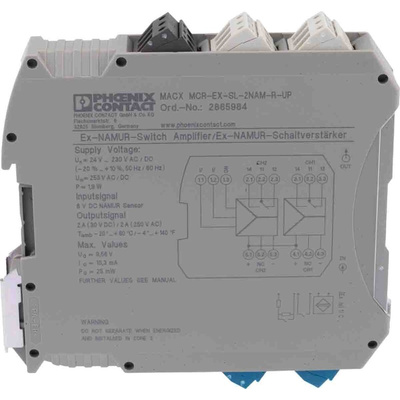

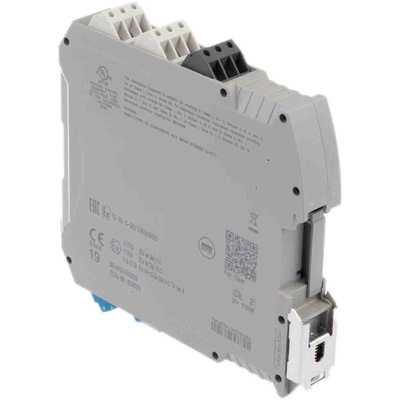

Phoenix Contact Galvanic Barrier, 10.3mA Maximum Current, 24V DC to 230V AC/DC Supply Voltage - MACX MCR-EX-SL-2NAM-R-UP - 2865984

Use this Phoenix Contact galvanic barrier to safely break ground loops and stop unwanted current from flowing between two circuits that mustn't be connected. By isolating the input and output power supplies to devices, the component ensures energy flows through a field and not the electrical connections. The isolation and control of electrical current improve safety and prevent it from grounding through a person's body, which can cause electrical shocks.
The unit's three-way electrical isolation provides optimal protection to establish safe current flows between power supply units and devices. An integrated Ex-i isolating amplifier allows the safe transfer of switching signals, even from explosive atmosphere zones (Ex areas). Thanks to an LED status display, you can monitor supply voltage, switching states and line faults to prevent accidents and equipment downtime. Use this galvanic barrier for industrial and commercial applications such as medical and telecommunications equipment.

• IP20 (ingress protection) rating indicates shielding from finger touch to promote safety and prevent electric shocks
• Polyamide housing is robust and durable, for use in tough environments
• Ex-i isolating amplifier offers maximum explosion protection to prevent the ignition and spread of fires

Sig Conditioner Ex-I Iso 2 CH NAMUR SIL2
