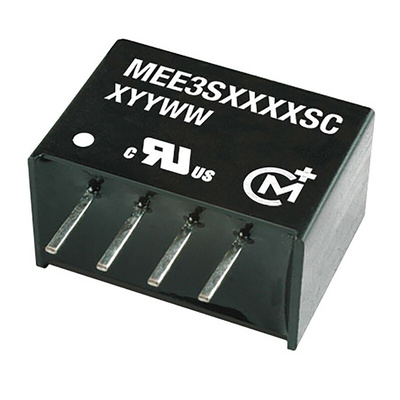

MEE3S1205SC, Murata Power Solutions MEE3 DC-DC Converter, 5V dc/ 600mA Output, 10.8 → 13.2 V dc Input, 3W, Through Hole,, Преобразователь

Murata Isolated 3W Single Output DC/DC Converter - MEE3 Series

MEE3 series isolated 3W single output DC/DC converters with an industry standard SIP package. These 3W single output isolated DC/DC converters have a high efficiency and power density and offer a full 3W load performance under a wide temperature range. Typical applications this MEE3 series of DC/DC converters include providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation.

High efficiency of up to 89% typically
High power density of 2.68W/cm³
Industry standard pinout
Performance at full load at wide temperature range of -40°C to 85°C
Fully encapsulated with toroidal magnetics
No heatsink or external components required
No electrolytic or tantalum capacitors
UL 94V-0 package material

Note

MTBF to MIL-HDBK-217F FN2 with nominal input voltage at full load

Standards

UL 60950

Approvals

cULus
