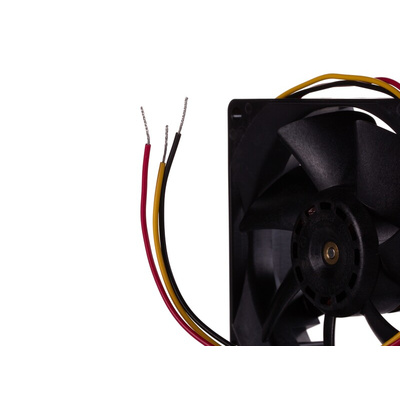

9S0812L4011, Sanyo Denki San Ace 9S Series Axial Fan, 12 V dc, DC Operation, 39.6m³/h, 600mW, 50mA Max, 80 x 80 x 25mm, Вентилятор

San Ace Silent DC Fans - S Series

Sanyo Denki San Ace silent DC fans are the lowest audible noise ball bearing DC fans available, with a reduction of up to -6dB when compared to standard fans. San Ace silent DC fans also feature excellent airflow and static pressure performance due to a new impeller and motor design.

50% reduction in vibration with precision dual ball bearing motor and fan blade balancing
Reduced switching noise at low speed compared to other DC fans
3rd wire pulse sensor for monitoring fan speed as standard
Airflow and noise level specification guaranteed over the life of the fan
Life at 40°C ambient 67,000 hours continuous operation (fan mounted in any position)
ECO product

Approvals

UL, CSA, TUV

Sanyo Denki Axial Fan, 16dB Noise Level, 2000rpm Speed - San Ace 9S Series - 9S0812L4011

Need to ensure your equipment stays cool while keeping distractions to a minimum? Choose this axial fan from Sanyo Denki. It has a low sound level of 16dB, so it won't add too much background noise to your work environment. Thanks to its speed of 2000rpm, it provides powerful cooling to prevent your machinery from overheating. The unit's dual ball bearing minimises friction during operation for smooth and efficient running. The built-in locked rotor burnout protection helps to ensure safety if an object prevents the impeller from rotating properly.

Features & Benefits

• Long expected service life of 40,000 hours at +60°C for long-lasting performance
• Compact dimensions of 80 (H) x 80 (W) x 25mm (D) for mounting in small enclosures
• Broad operating temperature range between -10°C and +70°C for use in harsh industrial conditions

Applications

• Electrical cabinets
• Server management
• HVAC systems
• Telecommunications

How can I identify the wires when installing this axial fan?

This fan comes with a lead wire that contains colour-coded conductors, making them easy to identify for quick wiring.
