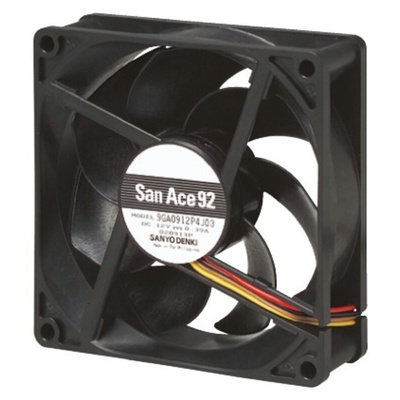

9S0912F4011, Sanyo Denki San Ace 9S Series Axial Fan, 12 V dc, DC Operation, 75.6m³/h, 1.68W, 140mA Max, 92 x 92 x 25mm, Вентилятор

San Ace Silent DC Fans - S Series

Sanyo Denki San Ace silent DC fans are the lowest audible noise ball bearing DC fans available, with a reduction of up to -6dB when compared to standard fans. San Ace silent DC fans also feature excellent airflow and static pressure performance due to a new impeller and motor design.

50% reduction in vibration with precision dual ball bearing motor and fan blade balancing
Reduced switching noise at low speed compared to other DC fans
3rd wire pulse sensor for monitoring fan speed as standard
Airflow and noise level specification guaranteed over the life of the fan
Life at 40°C ambient 67,000 hours continuous operation (fan mounted in any position)
ECO product

Approvals

UL, CSA, TUV

Sanyo Denki Axial Fan, Lead Wire Termination Type, 12V DC Voltage Rating - San Ace 9S Series - 9S0912F4011

Are overheated industrial electronics getting you hot under the collar? Help your equipment chill out with this axial fan from Sanyo Denki. Thanks to its powerful airflow rate of 75.6m³/h, it dissipates the warm air generated by your high-density components. This helps maintain a stable temperature around heat-sensitive devices and protects against premature failure. Thanks to its lengthy service life of 40,000 hours, it's a durable choice. A low power consumption of just 1.68W means this fan is an energy-efficient choice.

• Ultra-quiet noise level of 27dB is barely louder than a whisper
• Integrated sensor ensures optimal speed regulation
• Ball bearing design lowers rotational friction for reduced wear and tear
• Flame-retardant housing self-extinguishes in under 60 seconds for maximum safety in the event of a fire

Applications

• Electrical cabinets and enclosures
• Server rooms
• Commercial lighting systems

Is this product suitable for use in challenging settings?

Yes. Its wide operating temperature range between -10°C and +70°C means this fan won't lose its cool in extreme conditions.
