9S1212M4011, Sanyo Denki San Ace 9S Series Axial Fan, 12 V dc, DC Operation, 99.6m³/h, 1.56W, 130mA Max, 120 x 120 x 25mm, Вентилятор

San Ace Silent DC Fans - S Series

Sanyo Denki San Ace silent DC fans are the lowest audible noise ball bearing DC fans available, with a reduction of up to -6dB when compared to standard fans. San Ace silent DC fans also feature excellent airflow and static pressure performance due to a new impeller and motor design.

50% reduction in vibration with precision dual ball bearing motor and fan blade balancing
Reduced switching noise at low speed compared to other DC fans
3rd wire pulse sensor for monitoring fan speed as standard
Airflow and noise level specification guaranteed over the life of the fan
Life at 40°C ambient 67,000 hours continuous operation (fan mounted in any position)
ECO product

Approvals

UL, CSA, TUV

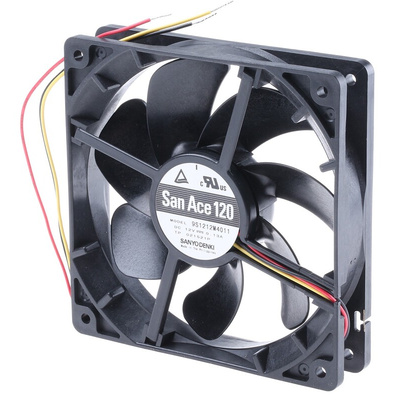

Sanyo Denki Axial Fan, 1850rpm, 12V DC - San Ace 9S Series - 9S1212M4011

This silent axial fan from Sanyo Denki provides quiet ventilation for your sensitive components. It runs at a low sound level of 24dB to prevent excess noise in your work environment. The device's compact dimensions of 120 (length) x 120 (width) x 25mm (depth) make it suitable for installation in cabinets and enclosures where space is limited. Thanks to its high air flow rate of up to 99.6m³/h, the unit provides effective cooling for larger electrical systems.

Features & Benefits

• High rotation speed of 1850rpm for powerful cooling
• Low power rating of 1.56W for energy-efficient operation
• Wide operating temperature range of -10°C to +70°C for use in demanding environments
• Long service life of up to 40,000 hours for long-term reliability

Applications

• Public works
• Control and automation systems
• Power distribution industry

Does this fan generate a lot of heat during operation?

This fan has an integrated ball bearing that helps reduce friction and minimise the build-up of heat during operation. This helps to ensure that the fan runs optimally and reduces wear for an extended service life.
