Artesyn Embedded Technologies Switching Power Supply, LPT102-M, 5 V dc, ±12 V dc, 2 A, 9 A, 18 A, 130W, Triple Output,, Источник питания

Artesyn Embedded Technologies Embedded Switch Mode Power Supply

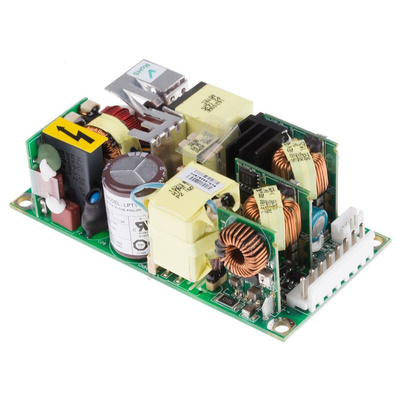

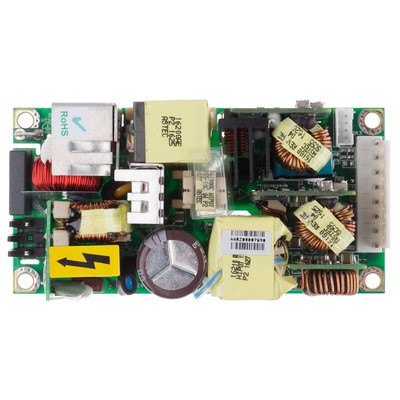

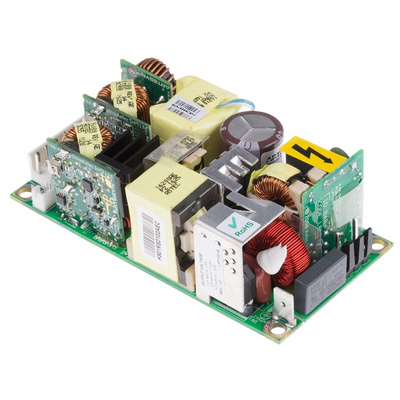

The Artesyn Embedded Technologies LPT120-M series embedded switch-mode power supply is 130W, AC to DC plug-in device with triple output. This switch-mode power supply has a universal AC input, triple output voltage with adjustable main output, active PFC, a built-in EMI filter and dual AC fuses. The footprint for this power supply is 2in and 4in with a height of less than 1U. It has a universal input supply voltage rating ranging between 90VAC and 264VAC or 127VDC and 300VDC.
Note:
A connector kit is available, please see stock number 751-2610
Derate each output as 2.5% per degree between 50°C and 70°C

Features and Benefits

Active power factor correction
Built in EMI filter (CISPR 22 Class B)
Chassis mount
High efficiency
Open frame package type
Output currents are 2A at 5V, 9A at 12V and 18A at -12V
Overload and overvoltage protection
Power fail
Remote sensing
Safety ground leakage current of 275ua at 50Hz and 60Hz and 264VAC input
Thermal overload protection
Universal AC input
Worldwide IT equipment (ITE) approval

Applications

Dental work
Equipment intended for non-patient contact and non-patient critical use in low power medical
Information technology equipment (ITE)
Laboratory applications
Light industrial systems

Certifications

60601-1
AUSTEL 60950
CB certificate and report
CE Mark (LVD)
CISPR22 Class B conducted
CSA 60950
EN55022 Class B conducted
EN61000-3-2 (Harmonic current compliance)
FCC Class B conducted
NEMKO 60950
TUV 60950
UL 60950
VDE0878PT3 Class B conducted

LPT102-M - Data Sheet
