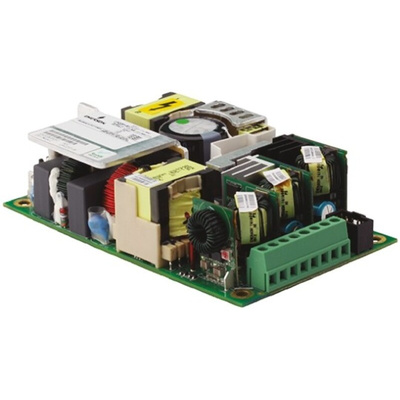

Artesyn Embedded Technologies Switching Power Supply, LPQ201-M, 3.3 V dc, 5 V dc, 2A, 100W, Quad Output, 90 →, Источник питания

Switch Mode Medical Approved Quad Output AC/DC Power Supply - LPQ200-M Series

Switch mode quad output AC/DC embedded power supplies with a low safety ground leakage current and medical and ITE approval. These switch mode AC/DC power supplies have a universal AC input, adjustable quad output voltages , active PFC and a built in EMI filter . The footprint for these AC/DC power supplies is 3" x 5" with a height of less than 1U. Suitable applications for these embedded AC/DC power supplies include information technology equipment (ITE) and light industrial systems, as well as for equipment intended for non-patient contact and non-patient critical use in low power medical, dental and laboratory applications.

Non-patient contact and non-patient critical medical safety approvals
Worldwide IT equipment (ITE) approval
Universal AC input
Active Power Factor Correction
Adjustable outputs
Overload and overvoltage protection
Thermal overload protection
Remote sensing
Power fail
Built in EMI filter (CISPR 22 Class B)
Safety ground leakage current of 275ua @ 50/60 Hz; 264 VAC input
EMI//RFI Compliance: FCC Class B conducted; CISPR22 Class B conducted; EN55022 Class B conducted; VDE0878PT3 Class B conducted
Harmonic current compliance: EN61000-3-2

Note

A cover kit is available please see stock number 751-1601. A connector kit is available please see 751-2614
Derate each output as 2.5% per degree from 50° to 70 °C.
MTBF: Bellcore

Standards

TUV 60950, 60601-1, UL 60950, 60601-1, CSA 60950, 60601-1, CB Certificate & report, CE Mark (LVD)

Approvals

UL, TUV, CB

LPQ201-M - Data Sheet
