Artesyn Embedded Technologies Embedded Switch Mode Power Supply

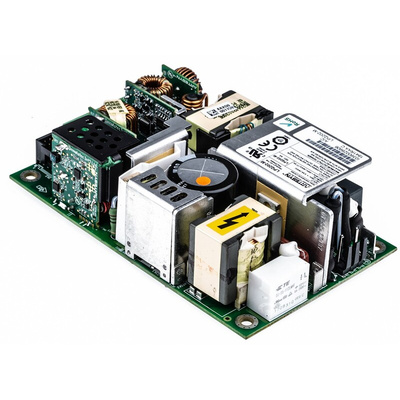

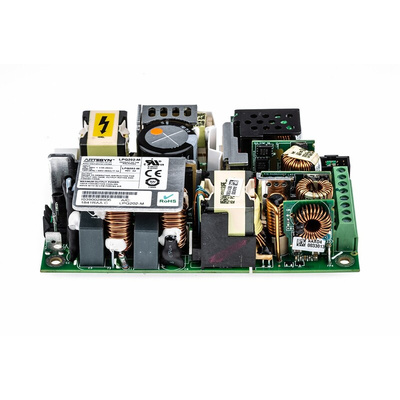

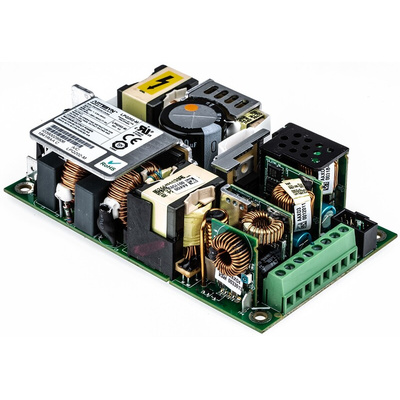

The Artesyn Embedded Technologies embedded switch-mode power supply from the LPQ202-M series is a 100W rated, AC to DC plug-in device with 4 outputs. This switch-mode AC/DC power supply has a universal AC input, adjustable quad output voltages, an active PFC and a built-in EMI filter. The footprint for these AC/DC power supply is 3in x 5in with a height of less than 1U. It has a universal input supply voltage rating range from 90VAC to 264VAC and 120VDC to 300VDC.
Note:
A cover kit is available please see stock number 751-1601. A connector kit is available please see 751-2614
Derate each output as 2.5% per degree from 50°C to 70 °C
MTBF: Bellcore

Features and Benefits

Active power factor correction
Adjustable outputs
Built in EMI filter (CISPR 22 class B)
Chassis mount
Open frame package type
Output currents are 2A at 5V, 3A at 12V, 9A at -12V and 18A at 24V
Overload and overvoltage protection
Power fail
Remote sensing
Safety ground leakage current of 275uA at 50Hz to 60Hz and 264 VAC input
Thermal overload protection

Applications

Dental and laboratory applications
Equipment intended for non-patient contact and non-patient critical use in low power medical
Information technology equipment (ITE)
Light industrial systems

Certifications

60601-1
60601-1
CB certificated and report
CE mark (LVD)
CISPR22 class B conducted
CSA 60950
EN55022 class B conducted
EN61000-3-2 (harmonic current compliance)
FCC Class B conducted
Non-patient contact and non-patient critical medical safety approvals
TUV 60950
UL 60950
VDE0878PT3 class B conducted
Worldwide IT equipment (ITE) approval
