2866695, Phoenix Contact QUINT-PS/ 1AC/48DC/20 Switch Mode DIN Rail Power Supply, 85 → 264V ac ac Input, 48V dc dc, Блок питания

Phoenix Contact QUINT POWER - Power supplies

The range of QUINT POWER from Phoenix contact are superior power supplies that provide a seamless experience as they're feature-packed with all necessary requirements and more. These power supplies maximise the availability of your plant by utilizing technologies such as NFC (Near field communication) so you can quickly configure these supplies from a smartphone, SFB (Selective Fusebreaking), 6-times nominal current for 12ms, extended life range of over 500,000 hours and super-reliable start in difficult loads with a static power reserve (POWERBOOST).

These brilliant power supplies are designed to be mounted onto a DIN rail and contain screw connections for your cables. Not to mention, these PSU's (Power supply unit) features a preventative function monitoring that allows the device to report on critical statues before any errors occur.

Features and benefits:

• Primary-switched


• Super-reliable power supplies come backed by over 500,000 hours of life


• Adjustable voltage ranges cover a vast spectrum of voltages.


• Fast tripping of standard circuit breakers wutg dynamic power reserve - 6 times to nominal current for 12ms


• Preventative function monitoring


• NFC technology allows you to easily configure the PSU (configure signalling thresholds and characteristic curves)


• Output of 24 VDC/20 A


• Slim design with a conformal coating to allow you to install it in extreme environments


• 93% efficient (for 230 V AC and nominal values)

How do I wire a DIN rail power supply?

The QUINTPOWER power supply unit's feature terminal blocks on both the top & bottom of the unit. You'll need to strip 7mm length from your cable and insert it into the terminal blocks. A simple screw connection (M4 screw) will then lock your cable into the terminal block, providing an output or input connection. However, please follow all manafactuer installation instructions.

What are DIN-rail power supplies used for?

Typically these power supplies are mounted into cabinets and are used in industrial circumstances. They can be used for automation, machinery or any project that has modules that are mounted on DIN-rails.

Note

665-7766, 665-7769, 665-7794 and 665-7790 do not feature SFB technology

Approvals

UL/C-UL Recognised (UL 60950), UL/C-UL Listed (UL 508) approved, CSA, CB, ABS

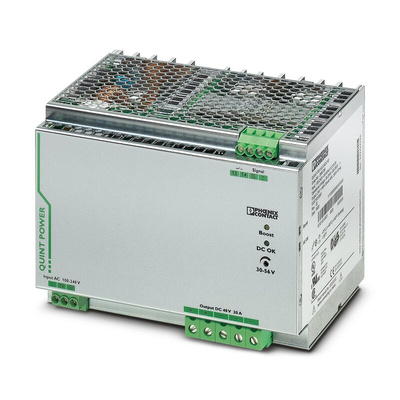

Phoenix Contact Switch Mode DIN Rail Power Supply, 960 Power Rating - QUINT-PS/ 1AC/48DC/20 - 2866695

Efficiently run your electrical equipment with this high-performance DIN rail power supply from Phoenix Contact. It's a primary-switching device that takes AC (alternating current) and converts it to a regulated output of 48V DC (direct current), to safely power machinery. It takes input voltages between 85 and 264V AC to maximise flexibility and features a static power reserve to reliably start difficult loads.
LEDs (light-emitting diodes) signal when the output voltage and power boost are actively working, to give you clear and simple signalling. SFB (selective fuse breaking) technology provides preventive function monitoring and quick tripping of breakers to protect machines from voltage errors and short circuits. Loads are connected in parallel, to isolate problems and keep your power supply working. These innovative features make the unit more than 93% efficient and give it an expected lifespan of 500,000 hours, minimising your maintenance downtime. Use it to streamline automated systems on busy production lines.

• Standard DIN rail mounting makes it highly compatible with control panels
• Conformal coating for safe use it in harsh environments
• Uses COMBICON pluggable, screw connectors for quick and secure wiring
• Compatible with NFC (near field communication) technology, making it easier to set up

Datasheet 2866695
