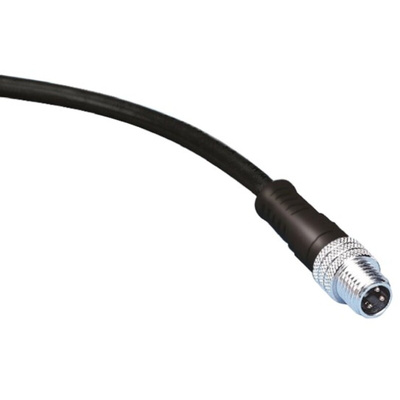

1200868228, Brad from Molex Straight Male 3 way M8 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Brad® Nano-Change® M8 Single Ended Male Cordsets

Brad® Nano-Change® M8 single ended male cordsets with a compact design suitable for use with miniature sensors. These Brad® Nano-Change® M8 cordsets have a PUR connector body and contact carrier with gold plated copper alloy contacts and are available with straight (403006) or right angle (404007) connector configurations with different cable options.

IEC compliant M8 cordset assembly with threaded couplers
Compact design for space sensitive applications
Anti vibration feature
IP67, NEMA 6 rated

Note

Cable Types:
40xxxxE02xxxx: Black PVC jacket, 0.25mm² PVC conductors, 300V, 80°C, UL AWM 2464
40xxxxP02xxxx: Black PUR/PVC jacket, 0.25mm² PVC conductors, 300V, 80°C.

Standards

UL File No.: E152210 (PVC versions)

Brad Harrison - M8

The Brad Harrison® range of connectors and splitter boxes have been principally designed for use in industrial applications. The Quick Disconnect® principle offers cost savings by enabling quick and simple replacement of either the sensors or cable, helping keep machine down time to a minimum. Designed for use in harsh environments, these connectors are available in re-wireable or pre-wired, factory moulded versions which are robust, compact and waterproof up to IP68. They are typically used for control system products such as proximity, limit and other forms of switches, but are equally at home in test, instrumentation and other electrical/electronic applications where the operating environment is less arduous.

Brad® Nano-Change® M8 Single Ended Male Cordsets - Catalogue Page

Nano-Change M8 male Cordset Data Sheet
