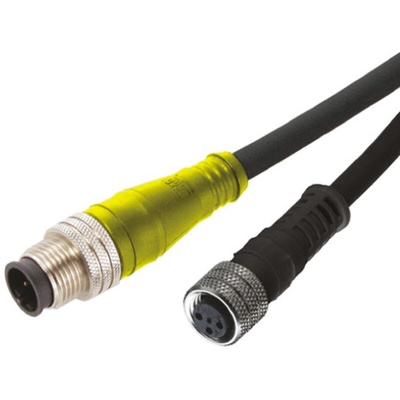

1200878415, Brad from Molex Straight Female 3 way M8 to Straight Male M12 Sensor Actuator Cable, 2m, Кабельная сборка

Brad® Nano-Change® M8 Female to Micro-Change® M12 Male Cordsets

Brad® Nano-Change® to Micro-Change® double ended cordsets with a M8 compact design suitable for use with miniature sensors and a larger M12 .

IEC compliant M8 to M12 cordset assembly with threaded couplers
M8 compact design for space sensitive applications
Anti vibration feature
Cable: Black PUR jacket, 0.25mm², 65x0.07 conductors

Brad Harrison - M8

The Brad Harrison® range of connectors and splitter boxes have been principally designed for use in industrial applications. The Quick Disconnect® principle offers cost savings by enabling quick and simple replacement of either the sensors or cable, helping keep machine down time to a minimum. Designed for use in harsh environments, these connectors are available in re-wireable or pre-wired, factory moulded versions which are robust, compact and waterproof up to IP68. They are typically used for control system products such as proximity, limit and other forms of switches, but are equally at home in test, instrumentation and other electrical/electronic applications where the operating environment is less arduous.

M8 Nano-Change to M12 Micro-Change Female to Male Straight Cordset - Drawing
