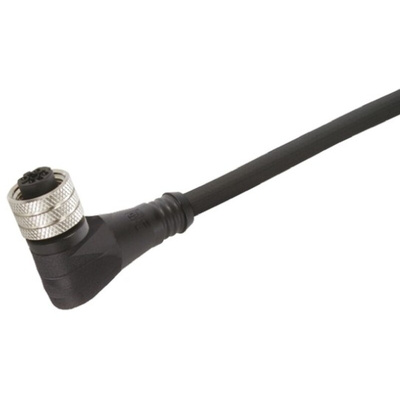

1200060013, Brad from Molex Right Angle Female 3 way M12 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Brad® Micro-Change® single ended pigtail female cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended female cordsets are available with straight or right angle connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
Configuration:
803000, 804000, 805000, 80800: Female Straight
803001, 804001, 805001, 808001: Female Right Angle

BRAD - M12

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets - Catalogue Page

Micro-Change M12 3P female cordset Data Sheet
