1200675067, Brad, Micro-Change Series, Right Angle M12 to Unterminated Cable assembly, 3 Core 2m Cable, Кабельная сборка

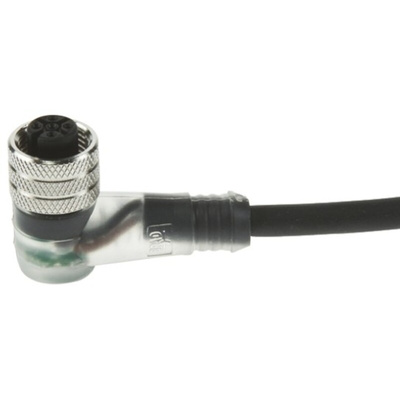

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets with LEDs

Brad® Micro-Change® single ended female cordsets with M12 single keyways (A-Coding) and LED indication for power and PNP sensor signal trigger. The connectors for these Brad® Micro-Change® single ended female cordsets are right angle configured and are made from PUR gold plated copper alloy contacts.

IEC compliant M12 cordset assembly
Green LED indication for power
Yellow LED indication for PNP sensor/output trigger
IP67, NEMA 6 rated
Anti-vibration feature

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198

BRAD - M12

Micro-Change M12 3P female cordset, 12m, right angle, with LED - Customer Drawing
