1200060015, Brad from Molex Straight Female M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Brad® Micro-Change® single ended pigtail female cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended female cordsets are available with straight or right angle connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
Configuration:
803000, 804000, 805000, 80800: Female Straight
803001, 804001, 805001, 808001: Female Right Angle

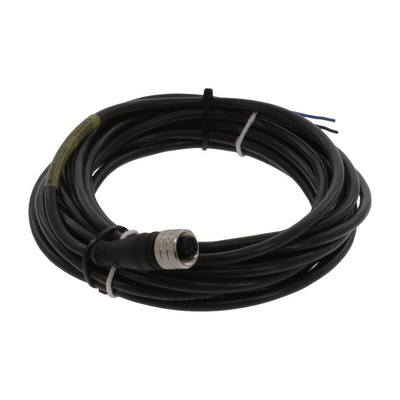

Brad from Molex M12 Sensor Actuator Cable, 5m Length, PVC - Micro-Change Series - 1200060015

Simplify your industrial connections with this Brad from Molex cable. It's already terminated at one end with a straight female circular connector to save you time. The other end has colour-coded conductors to help you wire it up quickly and correctly. This socket is a universal M12 4-pin connector with A-coding to work with common applications such as sensors and actuators. The lead is five metres long, giving you ample cable to make connections between devices on your network.

• Thread lock on socket keeps connections secure
• IP67 (ingress protection) rating means it's dust-tight and water-resistant for use on factory floors and in areas where frequent washdowns are needed
• Gold plating on the mating and copper alloy wires make it highly conductive for reliable performance

Applications

• Robotics
• Conveyor systems
• Process and control networks

Is this sensor actuator cable durable?

Yes, this sensor actuator cable is very durable. This is thanks to the tough, chemical-resistant PVC (polyvinyl chloride) jacket and strong, impact-resistant TPU (thermoplastic polyurethane) connector body.
