1200060025, Brad from Molex Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Brad® Micro-Change® single ended pigtail female cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended female cordsets are available with straight or right angle connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
Configuration:
803000, 804000, 805000, 80800: Female Straight
803001, 804001, 805001, 808001: Female Right Angle

Brad from Molex M12 Sensor Actuator Cable, 5m Length, PUR - Micro-Change Series - 1200060025

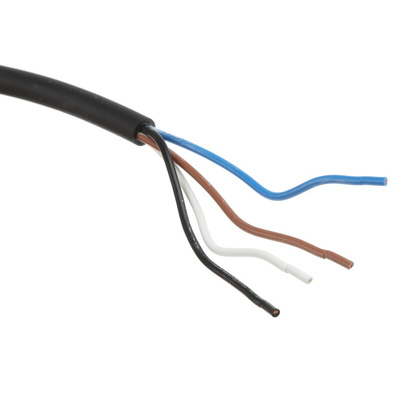

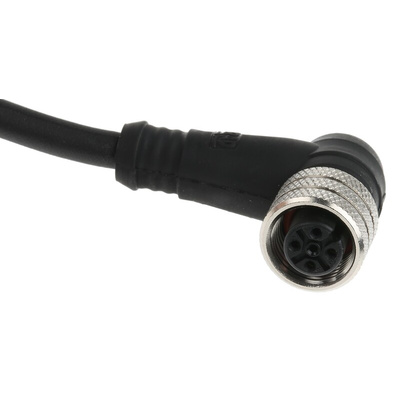

Safely route your sensor or actuator connection with this Brad from Molex cable. The M12 circular connector is A-coded to work with common automation applications. As the connector has a right-angle shape, you can easily plug it into a tight space and minimise cable strain. Five metres of cable gives you plenty of installation flexibility, with a free unterminated end and colour-coded conductors for easy connection to your controller.

• IP67 (ingress protection) rating means it's dust-tight and resistant to water jets and temporary immersion for use in harsh conditions
• Suitable for use with AC (alternating current) or DC (direct current) power to maximise compatibility
• PUR (polyurethane) jacket material is resistant to wear and oil for durability in industrial environments

Applications

• Industrial automation and control
• Robotics
• Automotive and aerospace industry
• Plant machines and equipment

How reliable is this sensor actuator cable?

The sensor actuator cable comes with a threaded socket to lock it in place, creating a reliable connection to your male plug. This makes it ideal for use with moving parts or in areas prone to vibration. It has strong and highly conductive copper alloy wires to increase dependability further.

BRAD - M12

Micro-Change M12 4P female cordset, right angle, 5m - Customer Drawing

Datasheet - 1200060025
