1200651787, Brad from Molex Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 10m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Brad® Micro-Change® single ended pigtail female cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended female cordsets are available with straight or right angle connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
Configuration:
803000, 804000, 805000, 80800: Female Straight
803001, 804001, 805001, 808001: Female Right Angle

Brad from Molex Right-Angle Female M12 to Free End Sensor Actuator Cable, 10m Length - Micro-Change Series - 1200651787

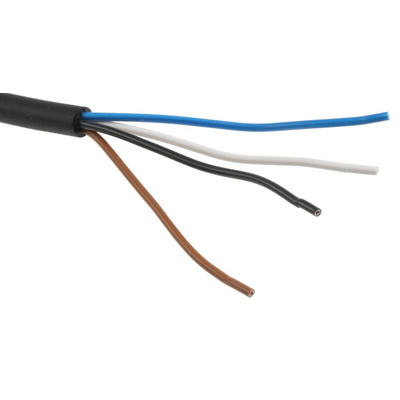

Use this Brad from Molex weatherproof cable to link sensors and actuators to your equipment. This unit has an M12 adapter on one end and is unterminated at the other end, giving you the freedom to choose which connector suits your setup. Its copper alloy contacts are highly conductive and deliver reliable signal transmission. A cable jacket made of durable polyurethane (PUR) material provides impact resistance and effective insulation, protecting you from electric shock. You'll find this weatherproof cable useful in heavy-duty manufacturing environments.

• Wide operating temperature range of -20°C to +80°C for use in demanding conditions
• Cable length of 10m, providing an ample supply for both distant equipment and multiple jobs
• Nickel-plated brass coupling nut to prevent accidental disconnection
• Light weight of 341.3g so it's easy to handle and won't strain equipment

Applications

• Automotive industry
• Material handing equipment
• Conveyors

Is this cable waterproof?

The cable has an IP67 (ingress protection) rating, indicating it can withstand dust and immersion in up to 1m of water. This means it's waterproof and can be used in marine applications or humid environments.

BRAD - M12

Micro-Change M12 4P female cordset, right angle, 10m - Customer Drawing

Datasheet - 1200651787
