1200060047, Brad from Molex Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Male Cordsets

Brad® Micro-Change® single ended pigtail male cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended male cordsets are available with straight (803006, 804006, 805006, 808006) or right angle (803007, 804007) connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:
80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP02xxxx: Black PUR/PVC jacket, 0.25mm² PVC conductors, 300V, 80°C
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C.

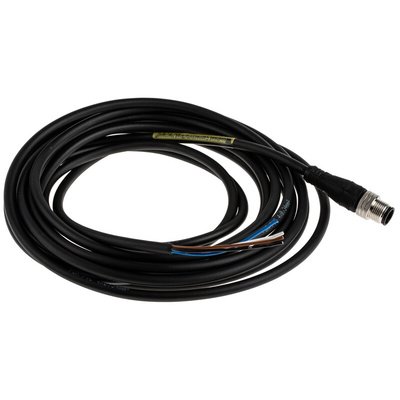

Brad from Molex Straight Male M12 to Free End Sensor Actuator Cable, 5m Length - Micro-Change Series - 1200060047

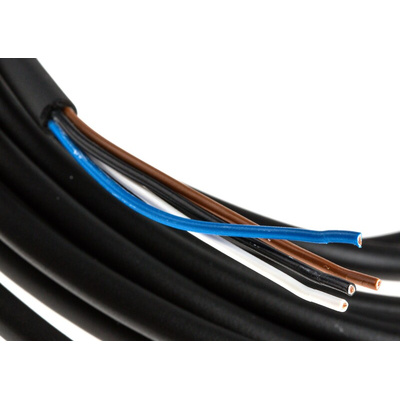

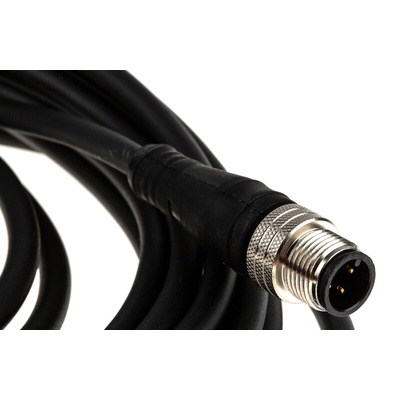

This Brad from Molex sensor actuator cable lets you transmit data in industrial automation systems. The component is a single-ended or pigtail cable assembly, meaning it has a connector on one end and free wires on the other. This gives you the freedom to either extend an existing link or terminate it with a connector of your choice. To ensure a secure connection, it has a nickel-plated brass coupling nut to prevent accidental unmating due to shock or vibration.

• IP67 (ingress protection) rating indicating resistance to dust and immersion in up to 1m of water
• Wide operating temperature range of -20°C to +80°C for use in challenging environments
• Connector orientation of 90° for easy installation in awkward spots
• Polyurethane (PUR) connector housing for insulation from electric shock

Applications

• Material handling equipment
• Robotics and automation
• Automotive industries

Can this cable withstand harsh environments?

This cable has a durable polyvinyl chloride (PVC) housing to provide reliable impact and abrasion resistance, making it suitable for use in harsh environments.
