1200060634, Brad from Molex Straight Female 5 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Brad® Micro-Change® M12 A-Code Single Ended Female Cordsets

Brad® Micro-Change® single ended pigtail female cordsets with M12 single keyways (A-Coding), PUR connector body and gold plated copper contacts. These Brad® Micro-Change® M12 single ended female cordsets are available with straight or right angle connector configurations with a variety of cable types.

IEC compliant M12 cordset assembly
IP67, NEMA 6 rated for harsh environments
Anti-vibration feature
3, 4 and 5 pole versions are intermatable

Note

Cable Types:

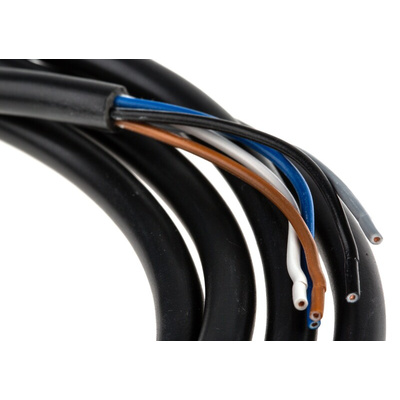

80xxxxxE03xxxx: Black PVC jacket, 0.34mm² PVC conductors, 300V, 80°C, UL AWM 2464
80xxxxxP03xxxx: Black PUR/PVC jacket, 0.34mm² PVC conductors, 300V, 80°C
80xxxxxH08xxxx: Black PUR jacket, 0.25mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
80xxxxxH09xxxx: Black PUR jacket, 0.34mm² PVC conductors, 300V, 80°C, Low smoke/zero halogen (LSOH), UL AWM 21198
Configuration:
803000, 804000, 805000, 80800: Female Straight
803001, 804001, 805001, 808001: Female Right Angle

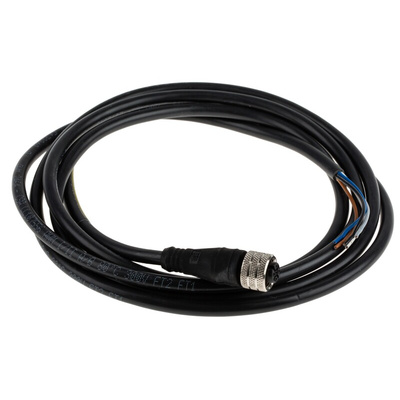

Brad from Molex Straight Female M12 to Free End Sensor Actuator Cable, 2m Length - Micro-Change Series - 1200060634

Use this Brad from Molex cable for quick and seamless data transfer between sensors and your equipment. It has a tough polyvinyl chloride (PVC) housing to provide impact and abrasion resistance, making it suitable for use in harsh settings. The copper alloy contacts have excellent conductivity properties, so you can be sure of a reliable connection. The unit has a wide temperature threshold and functions safely between -30°C to +80°C, so you can use it in environments where extreme cold or heat are likely.

• Cable length of 2m for easy access to connection ports
• Thermoplastic polyurethane (TPU) connector housing for insulation from electric shock
• Gold connector plating for corrosion resistance and long term performance

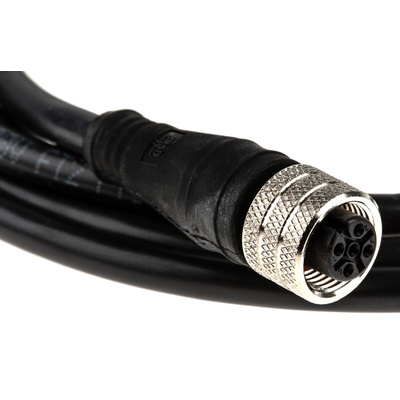

• Nickel-plated brass coupling nut for a secure, vibration-resistant grip on the connection port

Applications

• Material handling equipment
• Pharmaceutical manufacturing plants
• Gas plants

How much does this cable weigh?

The cable is lightweight at just 119.3g. This means it's easy to handle and won't put strain on your equipment or switches.

BRAD - M12

Micro-Change M12 5P female cordset, 2m - Customer Drawing

Datasheet - 1200060634
